ACPV: Assembly of a Control Pneumatic Valve Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment

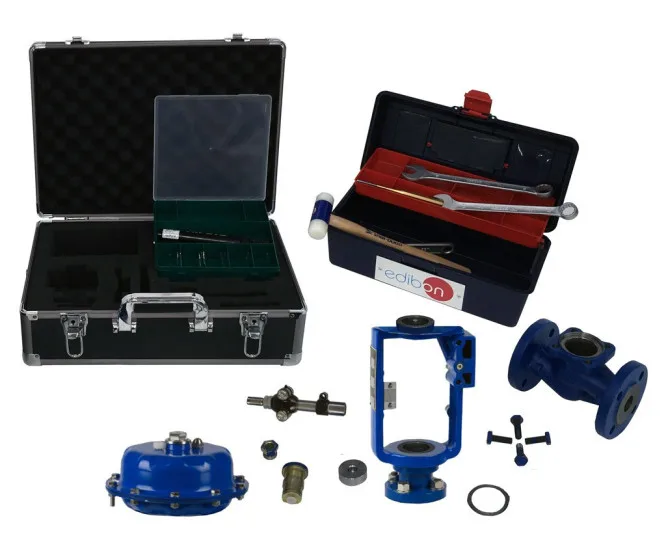

Supplied in a carrying case, the Assembly of a Control Pneumatic Valve Unit, "ACPV", is a globe valve with bellows; the case also includes a manual with two-dimensional plans, drawings of individual parts and of the whole unit, the main parts list, and the regulations related to the manufacturing materials.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Training valve nominal size | DN 25 |
| Training valve nominal pressure class | PN 16 |
| Valve stroke | 11 mm |
| Valve flow coefficient Kv | 9.3 m³/h |
| Case dimensions | 150 × 445 × 310 mm, approximately |
| Published unit weight | 5 kg, approximately |
Selected details from the explicitly named EDIBON unit in the manufacturer catalogue. Dimensions and weights are approximate. Confirm modules, service units, utilities and accessories separately in the quotation. Checked 2026-09-29.
Manufacturer reference document (opens in a new tab)
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Fluid mechanics experiments, syllabus and number of student workstations
- Required base unit, modules, sensors, control/data-acquisition software and accessories
- Bench/floor space, utilities, practical manuals and faculty training
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
