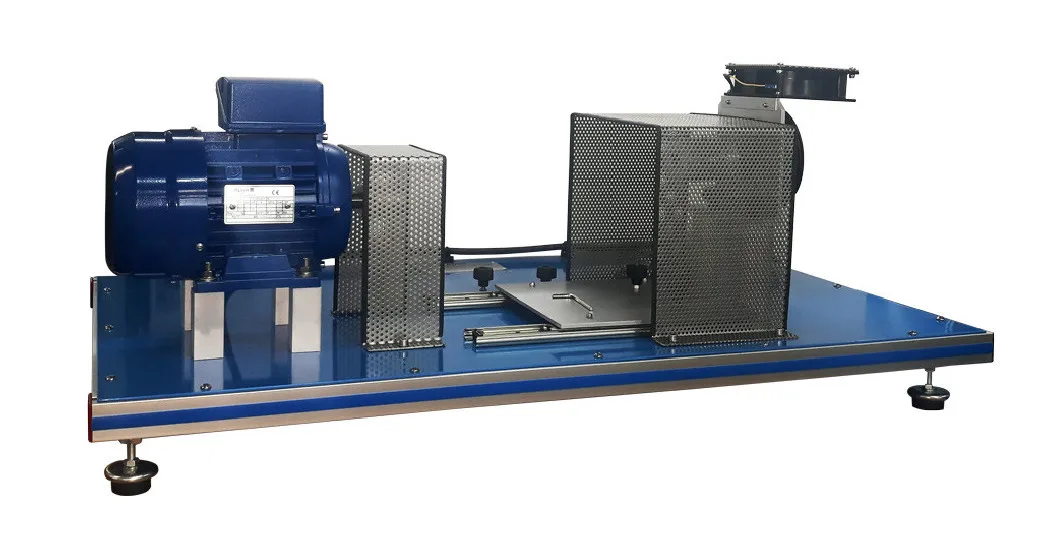

ADSG: Drive, Shaft, and Gear Alignment Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Coupling and uncoupling, maintenance, repair of the related units, and checking the operation can all be studied with the Drive, Shaft, and Gear Alignment Unit, "ADSG".
Published installation data
| Parameter | Value |
|---|---|
| Unit / Dimensions | 1000 x 560 x 450 mm approx |
| Unit / Weight | 50 kg approx |
| Electronic console / Dimensions | 490 x 330 x 310 mm approx |
| Electronic console / Weight | 10 kg approx |
Selected installation data from the manufacturer brochure for ADSG, pages 3. Dimensions and weights are approximate. These values describe the named unit or component; they do not establish which accessories are included. Confirm operating specifications, utilities and the complete supplied configuration in the current quotation. Checked 2026-09-29.
Manufacturer reference document (opens in a new tab)
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Mechanics experiments, syllabus and number of student workstations
- Required base unit, modules, sensors, control/data-acquisition software and accessories
- Bench/floor space, utilities, practical manuals and faculty training
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
