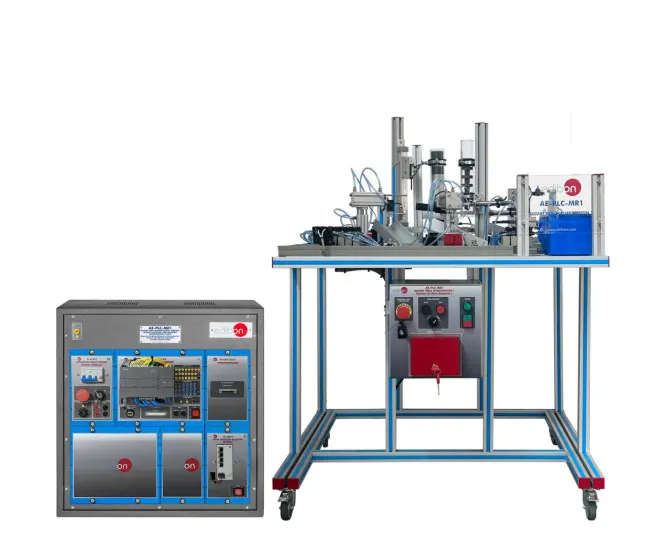

AE-PLC-MR1: Rotary Table Workstation: Feeding, Quality Control and Assembly (dimensional study)
Brand: EDIBON | Category: Scientific & Laboratory Equipment
An automatic rotary table combining feeding, quality control and assembly, supplied from a vertical store. The dimensional check is carried out as the table indexes each part through the stations in turn.
Technical Specifications
| Parameter | Value |
|---|---|
| Electrical supply | single-phase 200 VAC to 240 VAC/50 Hz |
| Dimensions | 945 x 730 x 1150 mm |
| Weight | 60 Kg approx |
| Supply voltage (single-phase) | 230 VAC, 1PH + N |
| Maximum pressure | 8 bar or 0.8 MPa |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
