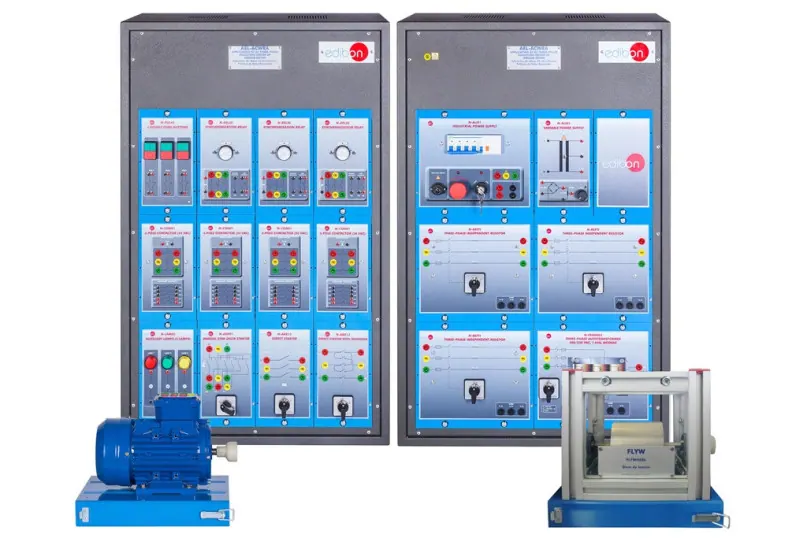

AEL-ACWRA: Application of AC Three-Phase Induction Motor of Wound Rotor
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Covers the operations performed with wound rotor induction motors, including rotor resistance starting and the speed control it allows. The student wires the power and control circuits with commutators, timers and contactors on the modular rack.
Technical Specifications
| Parameter | Value |
|---|---|
| Electrical supply | three-phase, 380 VAC to 400 VAC/50 Hz |
| Dimensions | 640 x 320 x 920 mm |
| Weight | 70 Kg approx |
| Supply voltage | 400 VAC, 3PH + N |
| Nominal voltage | 400 VAC |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
