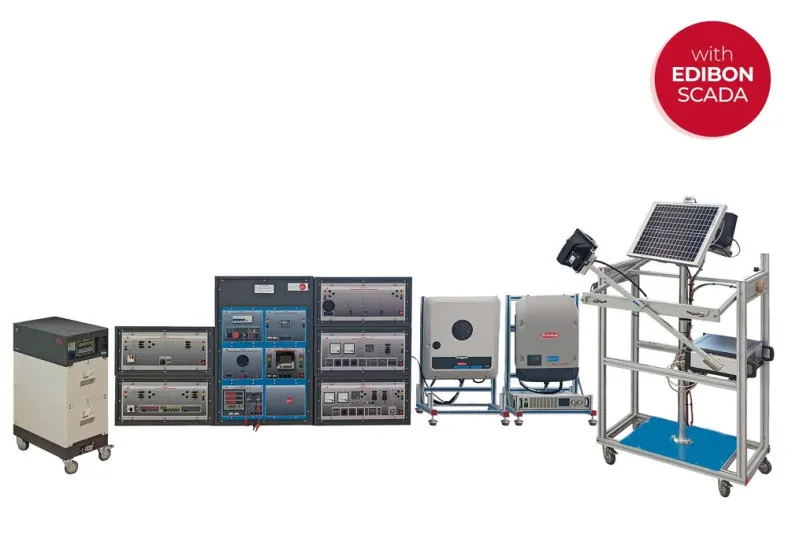

AEL-PHVGC: Computer Controlled Photovoltaic Power Plants Application
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Application with SCADA for studying photovoltaic power plants connected to the national grid. It covers dynamic control of the active power injected through a smart inverter, local voltage control at network nodes and battery storage through hybrid inverters.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | PHVGC-K1 photovoltaic modules analysis kit with wheeled frame and adjustable tilt angle |
| Specification | PHVGC-K2 three-phase photovoltaic power plants kit in parallel with the grid |
| Specification | PHVGC-K3 voltage regulation in local power grids kit |
| Specification | Three phase grid inverter fed by a photovoltaic panel array simulator |
| Specification | Network analyser at the inverter output plus three phase resistive load and three phase power supply |
| Specification | Covers maximum power point tracking, inverter derating, reactive energy generation and blackout behaviour |
