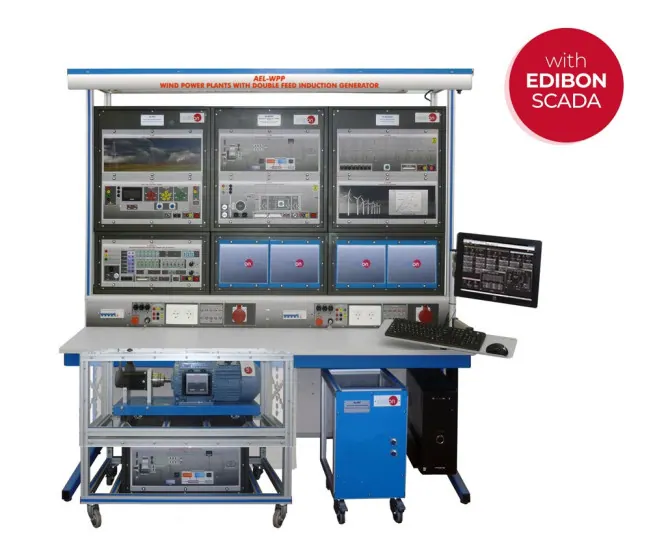

AEL-WPP: Computer Controlled Wind Power Plants with Double Feed Induction Generator Application
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Doubly fed induction generator driven by a prime motor, used to investigate the design and operation of modern wind power stations. The SCADA reproduces a user defined wind curve and can inject voltage dips to study how the machine responds.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Prime motor drives a double-feed induction generator |
| Specification | SCADA lets the user configure the desired wind curve and reproduces it automatically |
| Specification | Visualisation of rotor and stator current, line voltage and back to back inverter DC bus voltage |
| Specification | Measurement of rotor, stator and total active and reactive power and generator shaft speed |
| Specification | Voltage dip simulation of 20, 40 and 60 per cent with configurable injection time |
| Specification | Experiment data saved in a format compatible with spreadsheet applications |
