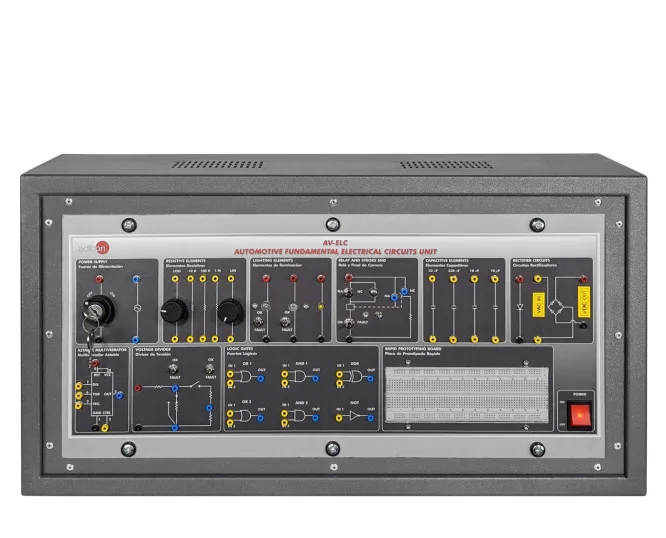

AV-ELC: Automotive Fundamental Electrical Circuits Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Designed by EDIBON, the Automotive Fundamental Electrical Circuits Unit, "AV-ELC", is used to study the main electrical circuits found in modern cars, giving a clear and hands-on introduction to contemporary automotive electronics.
Published installation data
| Parameter | Value |
|---|---|
| Electrical supply | single-phase 200 VAC – 240 VAC/50 Hz or 110 VAC – 127 VAC/60 Hz |
| Dimensions | 640 x 320 x 330 mm approx |
| Weight | 10 Kg approx |
Selected installation data from the manufacturer brochure for AV-ELC, pages 4. Dimensions and weights are approximate. These values describe the named unit or component; they do not establish which accessories are included. Confirm operating specifications, utilities and the complete supplied configuration in the current quotation. Checked 2026-09-29.
Manufacturer reference document (opens in a new tab)
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Basic electronics experiments, syllabus and number of student workstations
- Required base unit, modules, sensors, control/data-acquisition software and accessories
- Bench/floor space, utilities, practical manuals and faculty training
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
