Axon
Brand: Coherent | Category: Scientific & Laboratory Equipment

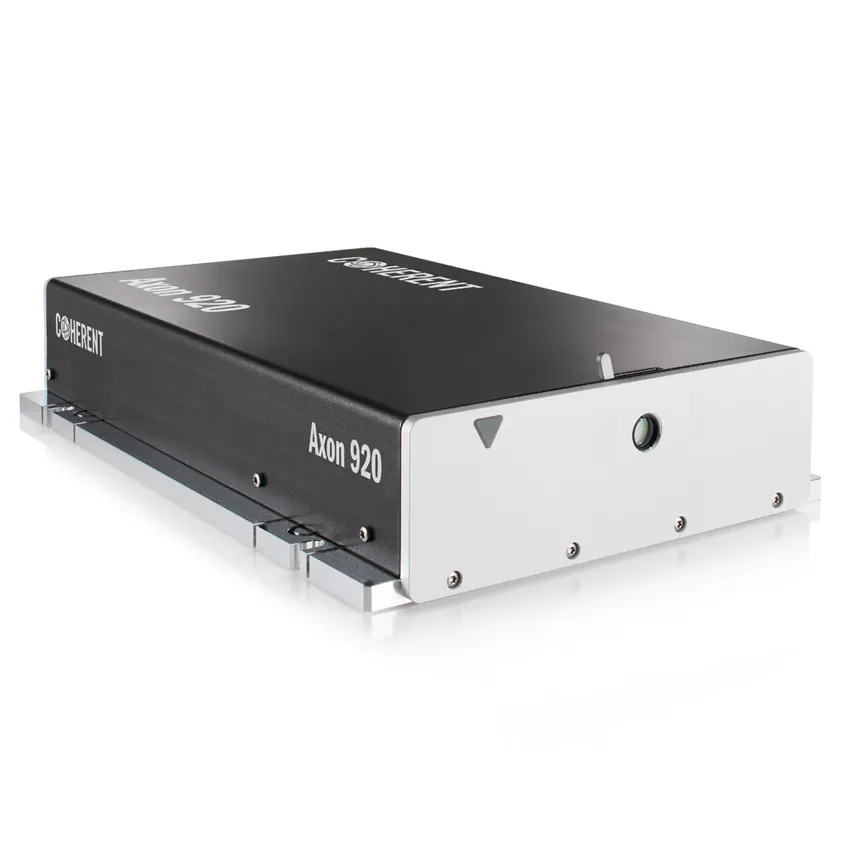

Axon are compact fixed wavelength femtosecond oscillators for life sciences and OEM instruments, used in multiphoton microscopy, semiconductor inspection and nano manufacturing. All models share a 212 x 318 x 62 mm head with dispersion pre-compensation and optional fast power control.
Technical Specifications
| Parameter | Value |
|---|---|
| Axon 780 | 780 nm, 800 mW, precompensation -8,000 to -23,000 fs2 |
| Axon 920-1 and 920-2 | 920 nm, 1200 mW and 2500 mW, precompensation 0 to -88,000 fs2 |
| Axon 1064-1 and 1064-3 | 1064 nm, 1200 mW and 3500 mW, precompensation 0 to -28,000 fs2 |
| TPC models | modulation rise/fall time <500 ns, contrast ratio >1,000:1 |
| Pulse width | <150 fs |
| Common dimensions | 212 x 318 x 62 mm |
