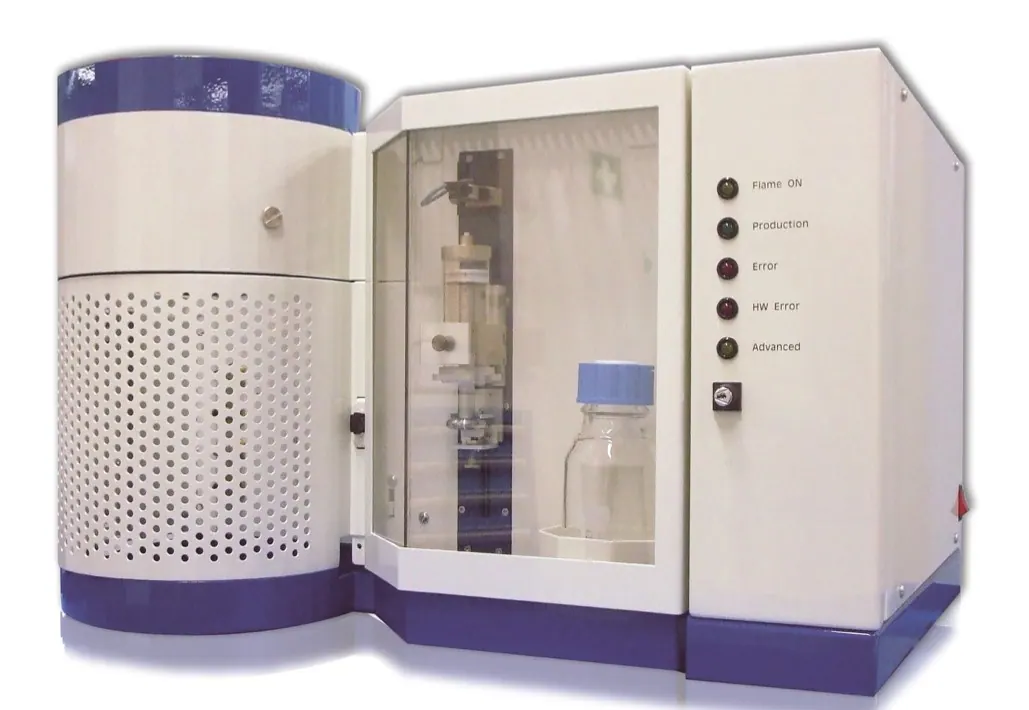

Bench-top Nanoparticle Synthesis System NPS-20
Brand: ParteQ | Category: Nanotechnology
A turnkey bench-top flame spray pyrolysis unit for making nanoparticles at research and early development scale. Liquid precursor is sprayed into a methane and oxygen flame, and the product powder is caught on a glass microfibre filter behind the reactor.
Technical Specifications
| Parameter | Value |
|---|---|
| Precursor flow rate | 0 to 15 mL/min, syringe volume up to 50 mL |
| Supporting flame methane and oxygen | 0 to 5 L/min each |
| Dispersion gas | oxygen or air at 0 to 10 L/min |
| Sheath gas | oxygen, air or inert gas at 0 to 20 L/min |
| Dimensions | 71 x 43 x 53 cm, weight 75 kg |
| Filter | borosilicate glass microfibre, 350 µm thick, 1 µm porosity |
