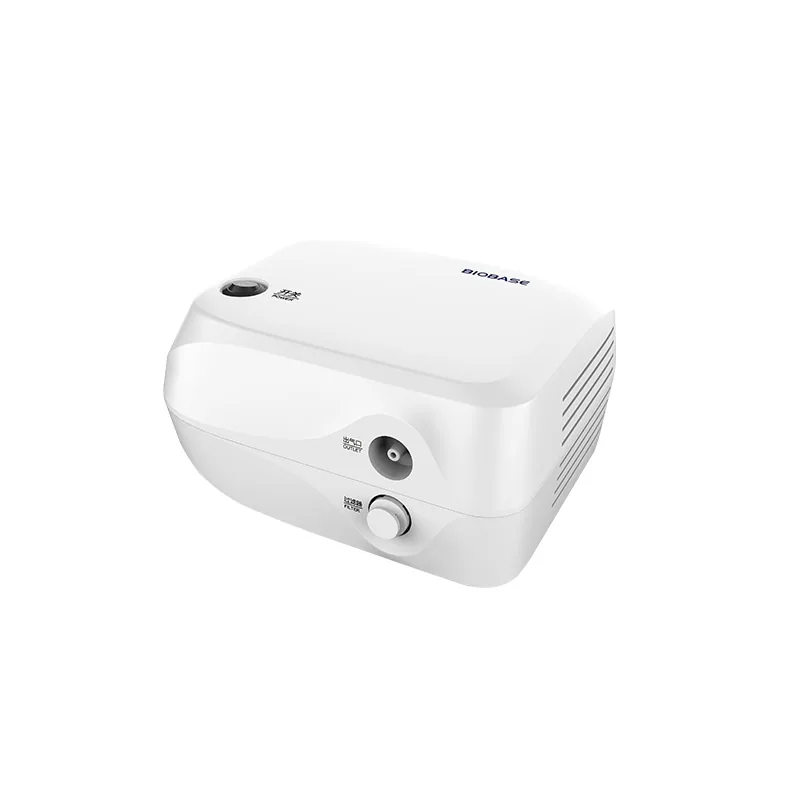

BIOBASE Compression Nebulizer BK-AN-IA
Brand: BIOBASE | Category: Medical Equipment
BIOBASE Compression Nebulizer BK-AN-IA is listed in VVON's patient monitoring & critical care range for Bangladesh. Published models: BK-AN-IA. Published details include Drug Cup Capacity: 2ml~8ml; Ambient Temperature Range: +5~+40°. Confirm the intended care setting, functions, accessories and operator training needs. For a quotation, send the care setting, patient group, required functions and accessories. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare the named models or configurations. Confirm options and included accessories in your quotation.
| Model | BK-AN-IA |
|---|---|
| Air Flow Rate | Compressor pump free air flow≥10L/min |
| Drug Cup Capacity | 2ml~8ml |
| Spray Rate | Maximum Atomization Rate≥0.2ml/min |
| Residual Liquid Medicine Amount | ≤1.0ml |
| Immersion Protection Level | IPXO |
| Median Diameter of Mist Particle | 2.7μm±25%, the diameter of mist particles less than 5μm accounted for> 65% |
| Electrical Safety Requirements | Class II Type B applications |
| Continuous Working Time | ≥4h |
| Noise | ≤60dB(A) |
| Atmospheric Pressure Range | 86~106KPa |
| Ambient Temperature Range | +5~+40° |
| Relative Humidity Range | 30%~75% |
| Input Power | 200VA |
| Power Supply | AC220V, 50/60Hz |
| External Size(W*D*H) | 219*210*128mm |
| Package Size(W*D*H) | 345*290*210mm |
| Net Weight | 2.1kg |
| Gross Weight | 2.9kg |
Manufacturer catalogue checked 2026-09-28.
Manufacturer reference document (opens in a new tab)
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Clinical, training or facility application
- Required configuration, accessories and existing equipment
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about BIOBASE equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
