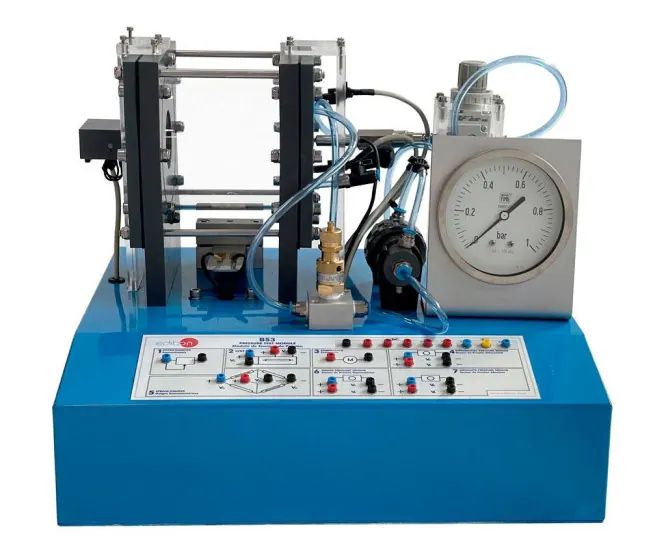

BS3: Pressure Test Module
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Teaches the use and applications of pressure sensors and shows the different pressure measurement techniques. A pressure chamber on the module carries several sensors so their outputs can be compared as pressure is varied.
Technical Specifications
| Parameter | Value |
|---|---|
| Electrical supply | single-phase 200 VAC to 240 VAC/50 Hz |
| Dimensions | 405 x 300 x 350 mm |
| Weight | 7.5 Kg approx |
| Total path | 2.5 mm. 4.- Use of Strain gauges to measure the distortion produced |
