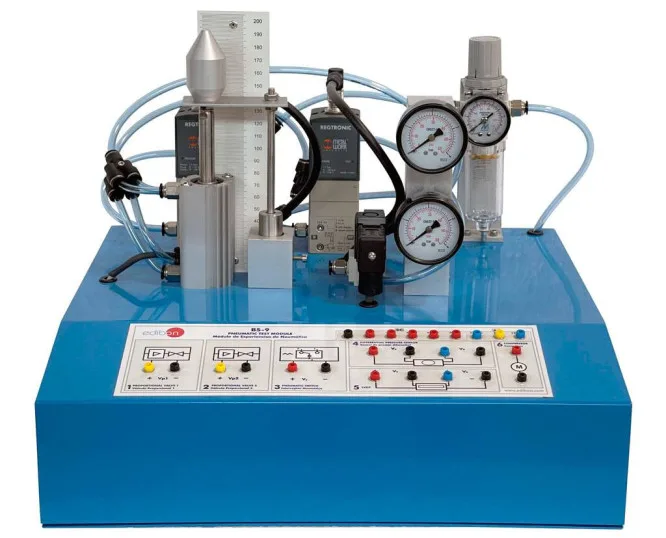

BS9: Pneumatic Test Module
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Designed by EDIBON, the "BS9" Pneumatics Test Module teaches control and handling techniques for a pneumatic piston.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Proportional-valve control range | 0–6 bar; nominal supply 24 VDC |
| Differential-pressure sensor range | 0–30 psi |
| Compressor airflow | 10 L/min |
| Dimensions | 405 × 300 × 350 mm approx. |
| Weight | 7 kg approx. |
| Required separately | BSPC or BSUB base unit |
Selected BS9 component data. Valve range, compressor output and sensor range are separate values; they are not a single whole-unit pressure rating. Confirm the teaching setup and base unit before ordering. Checked 2026-09-29.
Manufacturer reference document (opens in a new tab)
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Mechatronics experiments, syllabus and number of student workstations
- Required base unit, modules, sensors, control/data-acquisition software and accessories
- Bench/floor space, utilities, practical manuals and faculty training
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
