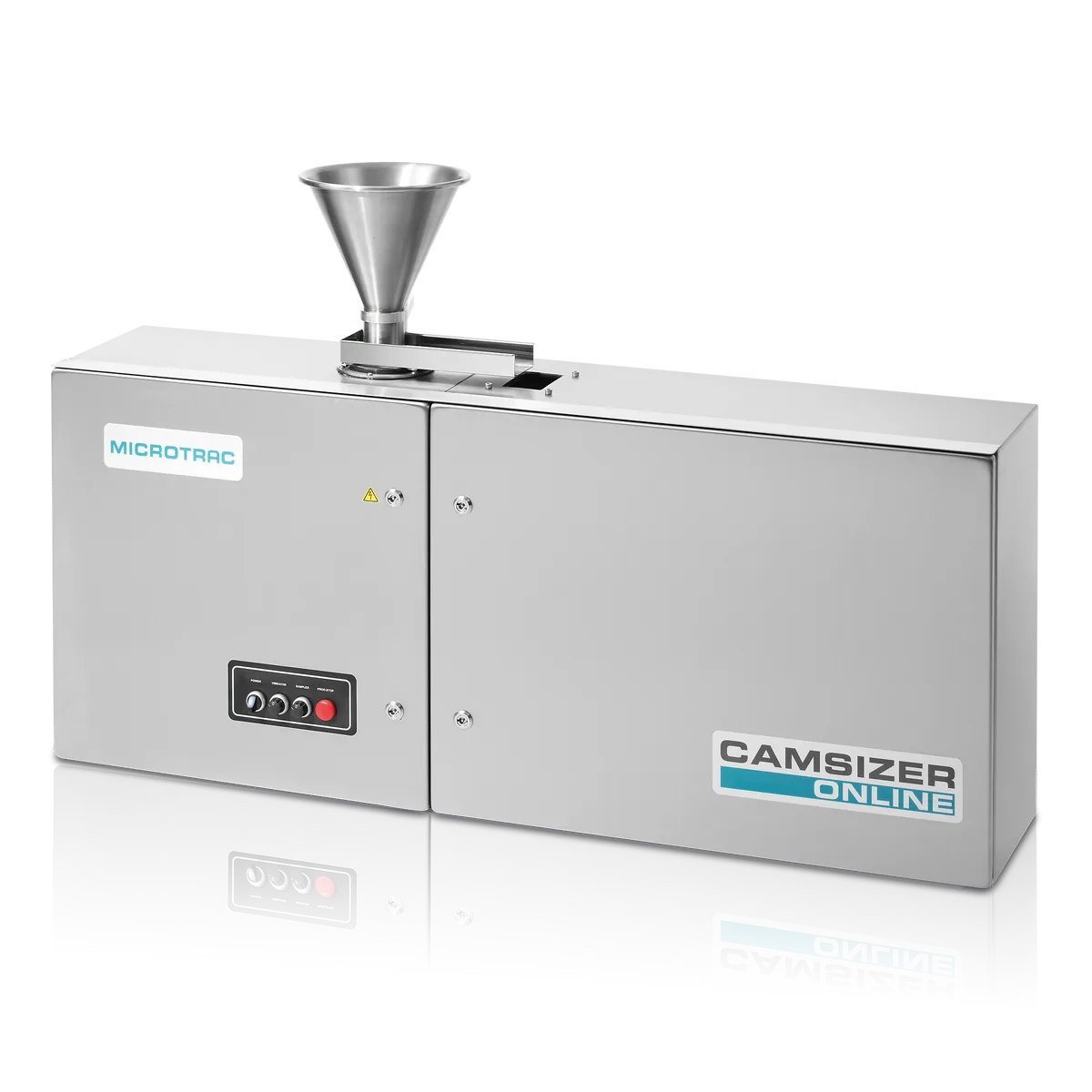

CAMSIZER ONLINE: In-Process Particle Size and Shape Analyser
Brand: Microtrac MRB | Category: Scientific & Laboratory Equipment
Process version of the CAMSIZER, built into a stainless steel housing so it can be mounted in a production loop and measure size and shape continuously rather than on grab samples. It covers 30 µm to 30 mm for dry free flowing powders, granulates and bulk material.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Measuring range | 30 µm - 30 mm (ONLINE) ; 160 µm - 135 mm (ONLINE XL) |
| Measuring time | ~ 5 – 10 minutes (depending on the desired measuring statistics) |
| Detection system | High-speed camera with 100 – 300 images per second (each with 5 MP) |
| Power consumption | Approx. 75 VA maximum |
| Temperature range | 10°C to 35°C (50°F to 95°F) |
| Storage temperature | -10°C to 50°C (14°F to 122°F) (dry only) |
| Dimensions (W x H x D) | 55 x 35 x 12 in (1401 x 900 x 300 mm) |
| Weight | ~ 132 lbs (60 kg) |
Selected values from the manufacturer’s technical data for this product or explicitly named model variants. Measurement performance depends on the sample and configuration. Confirm the current model, utilities, accessories and acceptance criteria in the quotation. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample material, dimensions/quantity and required preparation or analysis result
- Measuring/working range, repeatability requirements and compatible accessories
- Utilities, calibration/reference materials, software and service scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Microtrac MRB equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
