CHI134 Reference Electrode for Flow Cell
Brand: CH Instruments | Category: Nanotechnology
CHI134 is the reference electrode built for the CHI130 thin layer flow cell, with a polyacetal plastic body that CH Instruments describe as having good mechanical tolerance and chemical resistance. The centre wire is silver and the tip, 4 mm long and 3.4 mm in diameter, acts as the liquid junction through a VYCOR glass frit. The published specification states it is made for organic solvent and suits mild solvents such as acetonitrile, that the electrolyte may be changed for HPLC use, and that the plastic does not stand up to strong solvents such as THF.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Body material | Polyacetal |
| Internal wire | Silver |
| Liquid junction | Vycor glass, 4 mm length × 3.4 mm diameter |

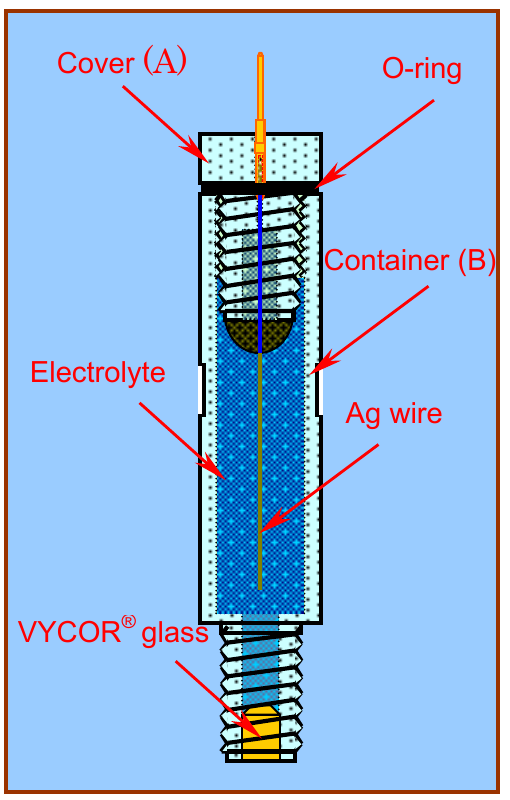

Selected CHI134 construction details. The manufacturer identifies limitations with strong solvents such as THF; confirm solvent and electrolyte compatibility for the intended flow-cell application. Checked 2026-09-29.
Manufacturer reference document (opens in a new tab)
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Exact host instrument/model and intended experiment
- Mechanical, electrical, optical or material compatibility as applicable
- Required dimensions/range, connectors, included parts and quantity
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about CH Instruments equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
