CHI151 Mercury/Mercurous Sulfate Reference Electrode
Brand: CH Instruments | Category: Nanotechnology

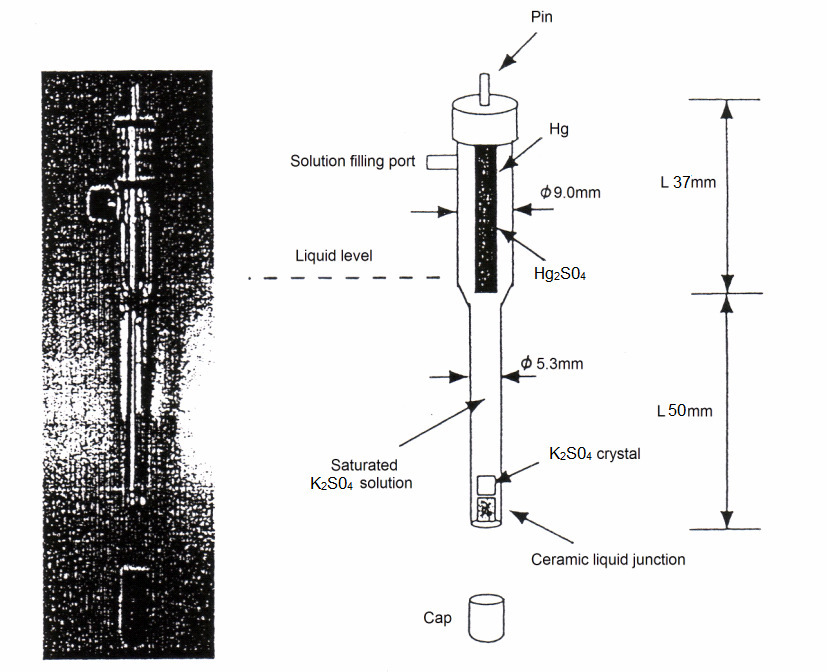

The CHI151 is the mercury / mercurous sulfate reference electrode in the CH Instruments range, running on Hg2SO4 + 2e = 2Hg + SO4 2- at a published 0.64 V against NHE at 25 C. Saturated K2SO4 is the filling solution and a ceramic liquid junction carries the contact, with the published drawing showing a 9.0 mm diameter chamber 37 mm long above a 5.3 mm diameter stem 50 mm long. CH Instruments direct users to refill with saturated K2SO4 and to store the electrode standing in the same solution.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Reference system | Mercury / mercurous sulfate |
| Published reference potential | 0.64 V versus NHE at 25 °C |
| Electrolyte | Saturated K₂SO₄ |
The stated potential is tied to the manufacturer’s temperature and electrolyte conditions. Confirm laboratory handling requirements and application compatibility. Checked 2026-09-29.
