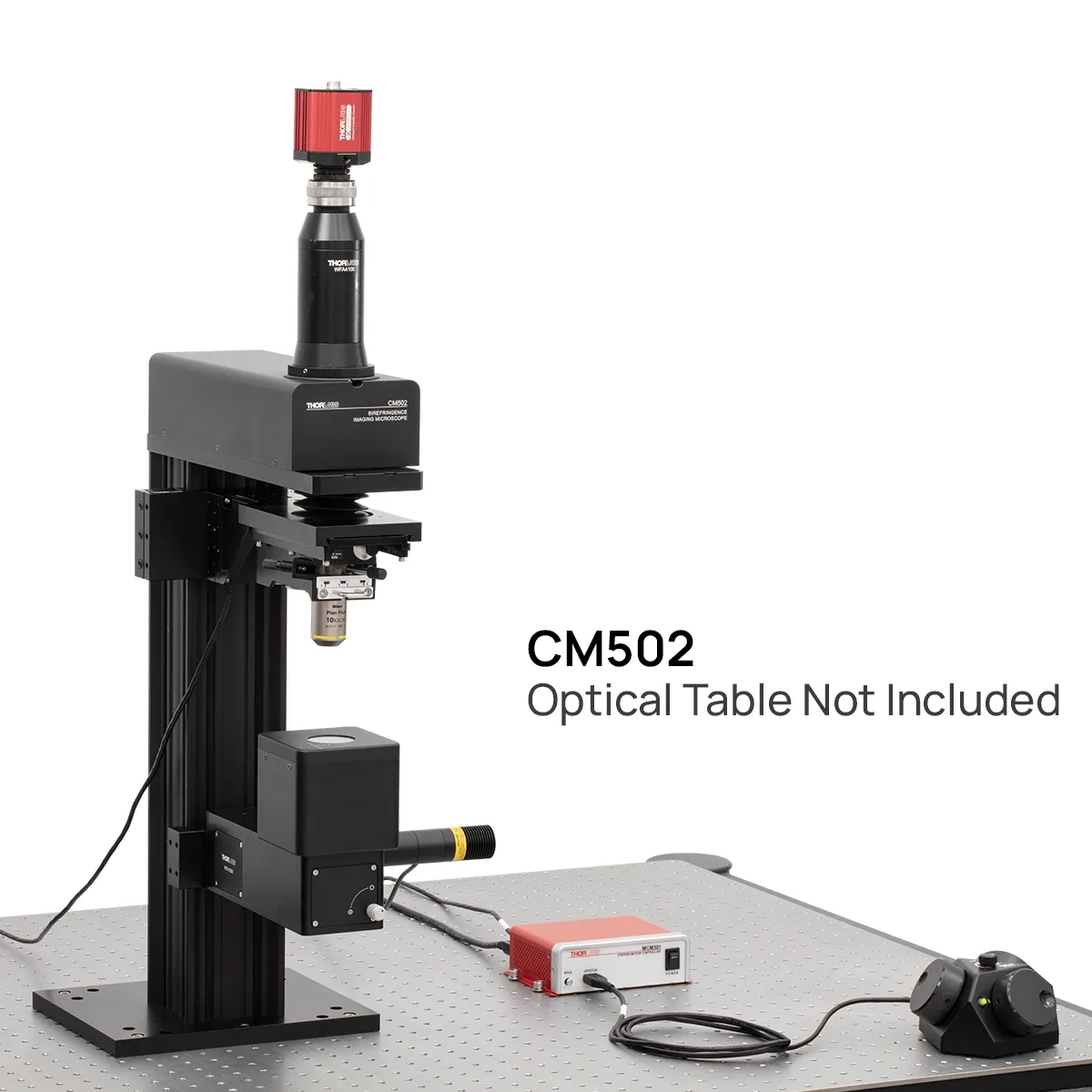

CM500 Series Cerna Birefringence Imaging Microscopes
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Cerna based microscopes that map stress and strain induced birefringence in a sample, reporting retardance and fast axis azimuth from a set of input polarisation states. Motorised and manual objective arm versions are offered.
Technical Specifications
| Parameter | Value |
|---|---|
| Light source wavelength | 632.8 nm plus or minus 1 nm, customisable from 488 to 780 nm |
| Retardance measurement range | 0 to 316 nm standard, 0 to 100 nm low range |
| Retardance accuracy | plus or minus 10 nm standard, plus or minus 1 nm low range |
| Specification | Azimuth range plus or minus 90 degrees, accuracy plus or minus 3 degrees |
| Spatial resolution | 1.055 micrometres with the included 10X 0.3 NA objective |
| Specification | Field of view 0.84 mm x 0.71 mm; measurement rate under 20 s |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about ThorLabs equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
