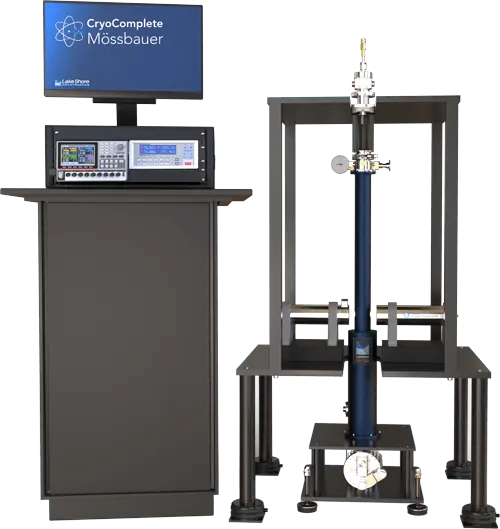

CryoComplete Mossbauer
Brand: Lake Shore | Category: Nanotechnology
CryoComplete Mossbauer is an integrated cryogenic Mossbauer spectroscopy system from Lake Shore and Iron Analytics. Lake Shore supply the CCS-800-205 cryostat, Model 335 controller and MeasureLINK software. Iron Analytics supply the VT5 velocity drive and TMS5 detector.
Technical Specifications
| Parameter | Value |
|---|---|
| Cryostat | Lake Shore CCS-800-205, <5 K to 300 K, exchange gas sample environment |
| Typical temperature stability | +/-50 mK |
| Temperature control | Lake Shore Model 335 temperature controller |
| Velocity drive | Iron Analytics VT5, integrated velocity generator up to 50 mm/s |
| Detector | Iron Analytics TMS5 YAP:Ce scintillation detector with 25 mm (1 in) photomultiplier, 10 keV to 30 keV |
| Spectrum registration | 1024 channels per unfolded spectrum |
