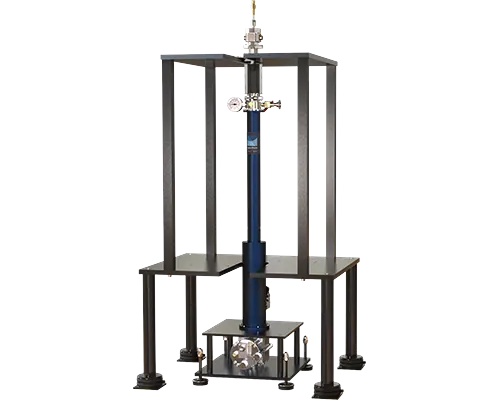

Cryogen-Free Mossbauer Cryostats
Brand: Lake Shore | Category: Nanotechnology
The CCS-800-205 is a closed-cycle cryostat optimised for Mossbauer spectroscopy, cooling powders and irregularly shaped solids in exchange gas. Vibration isolation keeps typical vibrational line broadening to 0.01 mm/s. The supporting stand includes lead shielding.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | CCS-800-205 |
| Temperature range | <5 K to 300 K |
| Typical temperature stability | +/-50 mK |
| Sample chamber inner diameter | 38 mm (1.5 in) |
| Typical vibrational line broadening | 0.01 mm/s |
| Cooldown | 2.5 h |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Lake Shore equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
