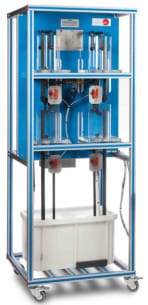

CTAC: Computer Controlled Coupled Tanks System
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Four transparent tanks, each with a pressure sensor for level, coupled through computer controlled solenoid valves. Two independently controlled pumps drive the water, and a manual valve at each outlet introduces unmeasured disturbances.
Technical Specifications
| Parameter | Value |
|---|---|
| Electrical supply | single-phase 200 VAC to 240 VAC/50 Hz |
| Dimensions | 700 x 670 x 1650 mm |
| Weight | 40 Kg approx |
| Power supply outputs | 24 Vdc, 12 Vdc, -12 Vdc, 12 Vdc variable |
| DC input | 16 (24 V DC) |
