Dose Calibrators (CRC-55t R, CRC-55t PET, CRC-77t HR, CRC Smart Chamber HL, CRC Smart Chamber RPh)
Brand: MiE GmbH | Category: Nuclear Medicine & Imaging
MiE publish this dose calibrator range on their accessories index and state that they are a service partner of CAPINTEC / MIRION. The CRC-55t and CRC-77t units carry an 8 inch LCD touch screen with an intuitive user interface, over 80 preset nuclides with more that can be added, eight individual hotkeys for the most frequently used nuclides, live display update during sample measurement and automated quality control. The CRC Smart Chamber models are operated through a web browser, communicate over Ethernet with the power supply over USB, and are available with or without a laptop. Every model has a lead shielded measurement chamber whose geometry is optimised for reliable reproducible results.
Plan your specification
Match the CRC chamber to your measurement workload
This listing covers several CRC configurations. Compare the measurement range and operating interface for the work your department actually performs.
- Nuclides and activity range
- List each radionuclide and the maximum activity to be measured, with units. Compare the proposed chamber's published range for those nuclides rather than selecting by the R, PET or HR name alone.
- Bench and container fit

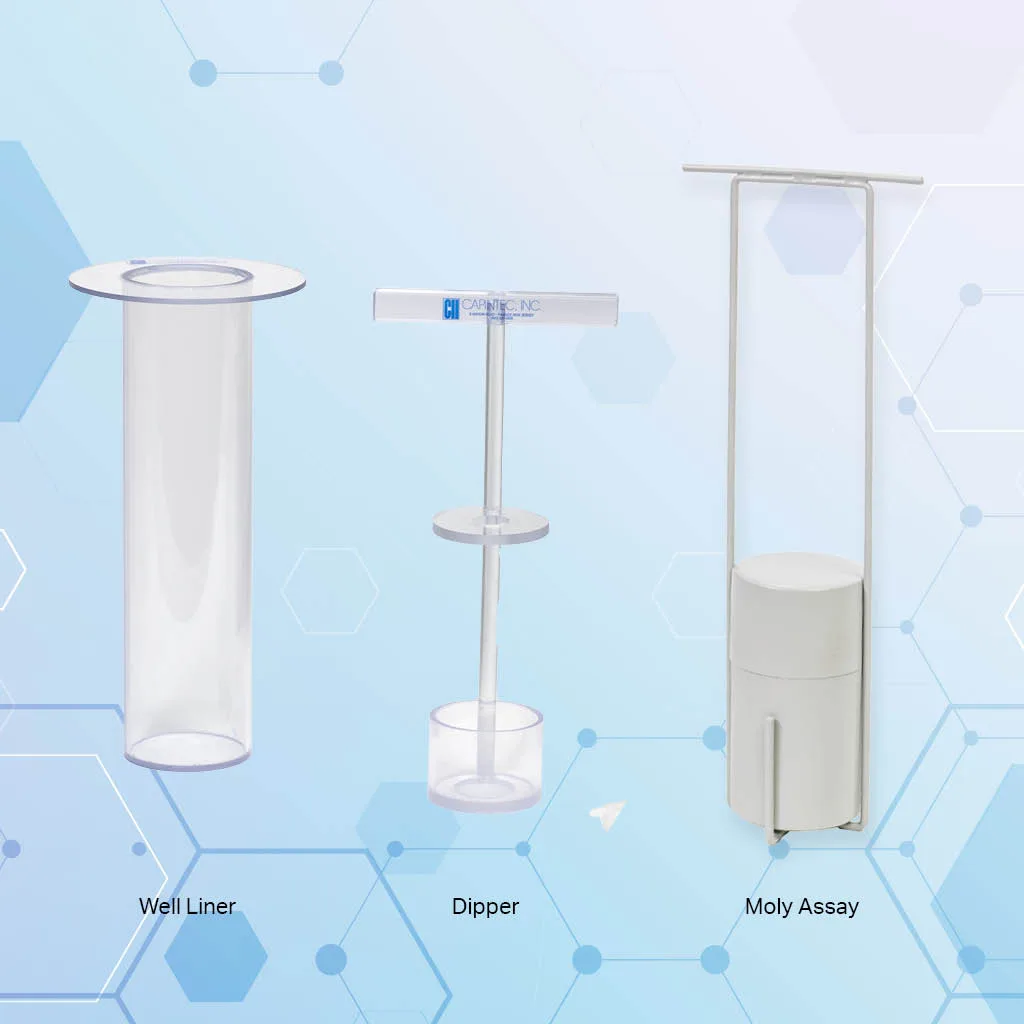

- Identify the vial and syringe formats, holders and existing bench shielding. Ask for chamber dimensions and the supplied liner, dipper and accessories to confirm physical fit.
- Operation and QC records
- The range includes touchscreen units and browser-operated Smart Chambers. Specify local or network operation, workstation needs and how routine quality-control results will be recorded.
Product documentation
Technical Specifications
| Parameter | Value |
|---|---|
| CRC-55t R | max. 222 GBq (6 Ci) Tc99m, 74 GBq (2 Ci) F18 |
| CRC-55t PET | max. 2664 GBq (72 Ci) Tc99m, 740 GBq (20 Ci) F18 |
| CRC-77t HR | max. 15 TBq (400 Ci) Tc99m, max. 4.8 TBq (130 Ci) F18 |
| CRC Smart Chamber HL | max. 222 GBq (6 Ci) Tc99m, 74 GBq (2 Ci) F18 |
| CRC Smart Chamber RPh | max. 2664 GBq (72 Ci) Tc99m, 740 GBq (20 Ci) F18 |
Published manufacturer data for the listed model or variants. Confirm the exact configuration, accessories and test conditions in the quotation. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Intended department workflow, radionuclide and equipment configuration
- Required range, sensitivity/geometry and compatible system interfaces
- Site requirements, physics acceptance, training and service scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Radionuclides and maximum activity for each, with units
- Vial/syringe formats and existing chamber or shielding
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about MiE GmbH equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
