EAN: Antenna Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment

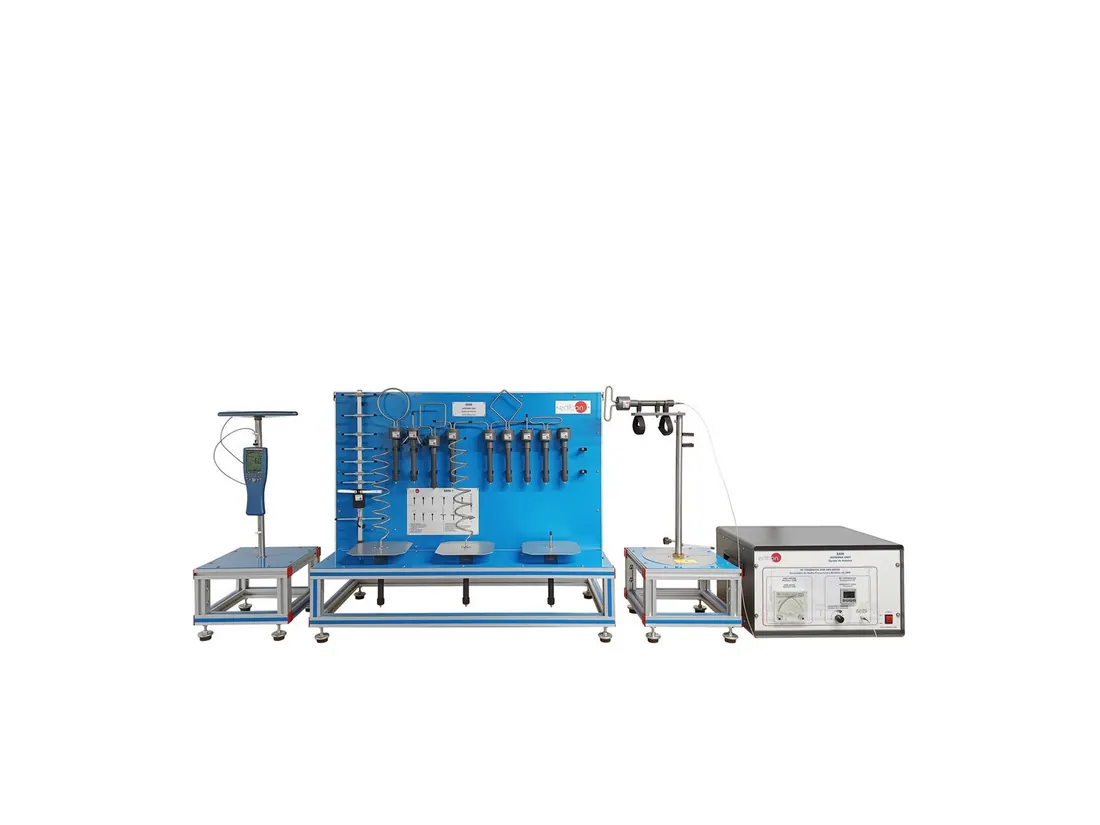

A self contained antenna measurement bench with transmitter and receiver towers and a kit of antennas. Students measure radiation patterns, real time signal level, standing wave ratio, bandwidth, directivity and antenna gain without additional hardware.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | RF generator based on a voltage controlled oscillator, 600 MHz to 1700 MHz |
| SWR meter | frequency range 600 MHz to 2.5 GHz, insertion loss 0.1 dB |
| Spectrum analyser | frequency range 700 MHz to 2.5 GHz, level range -80 dBm to 0 dBm |
| Specification | Spectrum analyser accuracy +/- 4 dB, configurable sample time, minimum 100 ms |
| Specification | Transmitter tower with degree wheel and holders for horizontal and vertical mounting |
| Specification | EAN-1 Antennas Kit 1 included, all antennas connect through SMA at 50 ohm |
