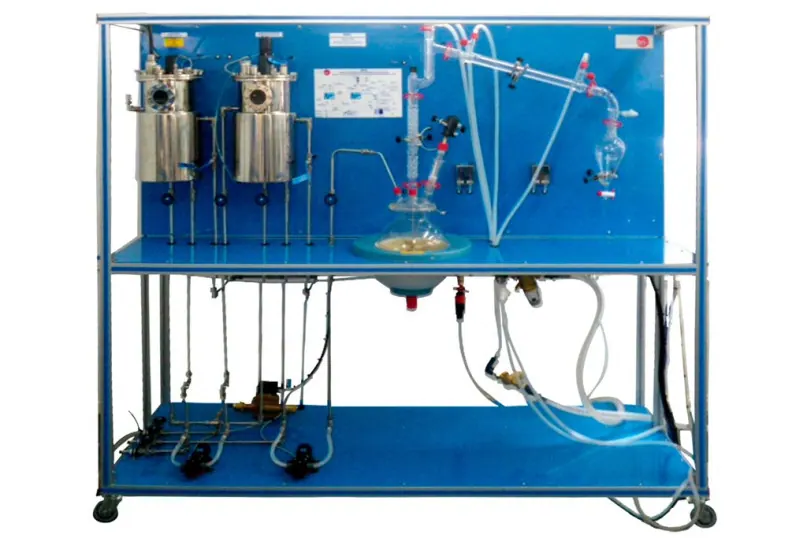

EBEB: Bioethanol Process Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Laboratory scale bioethanol plant covering liquefaction and saccharification of the raw material, fermentation of the sugars and distillation of the product. Temperature, pH and carbon dioxide are monitored through each stage of the process.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Three main components, a mash tank, a fermentation tank and a distillation unit |
| Specification | Vessels, valves and accessories in stainless steel, distillation unit in borosilicate glass with Neoceram sight glasses |
| Specification | Mash tank uses alpha-amylase for liquefaction and glucoamylase for saccharification |
| Specification | Fermentation tank with temperature sensor and CO2 meter, pH adjusted by acid and base |
| Specification | Both tanks heated indirectly by a jacket fed from a thermostatic bath and pump, and stirred constantly |
| Specification | Distillation unit with heating mantle, stirrer, column, cold finger dephlegmator, condenser and decanting funnel |
