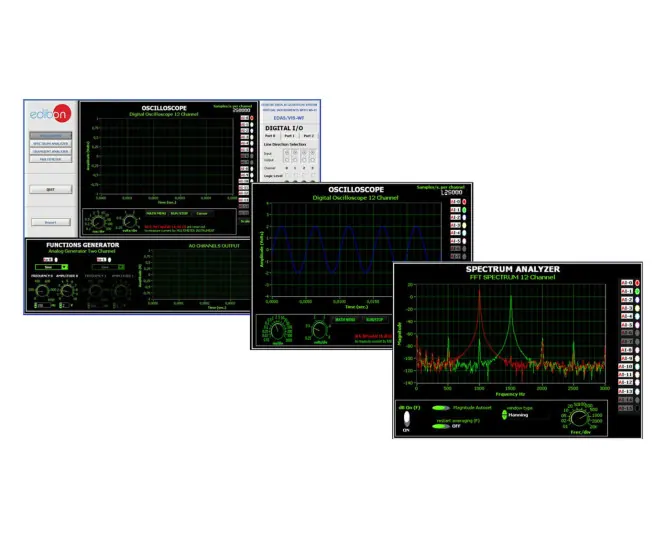

EDAS/VIS-WF: EDIBON Data Acquisition System / Virtual Instrumentation System with WI-FI communication
Brand: EDIBON | Category: Scientific & Laboratory Equipment
A data acquisition and virtual instrumentation system communicating over Wi-Fi. It performs acquisition, conditioning, processing and display of the signals connected to the unit, removing the wired link to the computer.
Technical Specifications
| Parameter | Value |
|---|---|
| Electrical supply | single-phase 200 VAC to 240 VAC/50 Hz |
| Dimensions | 310 x 220 x 145 mm |
| Weight | 2 kg approx |
| Maximum input voltage | +/-10V |
| Maximum output voltage | +/-10V |
