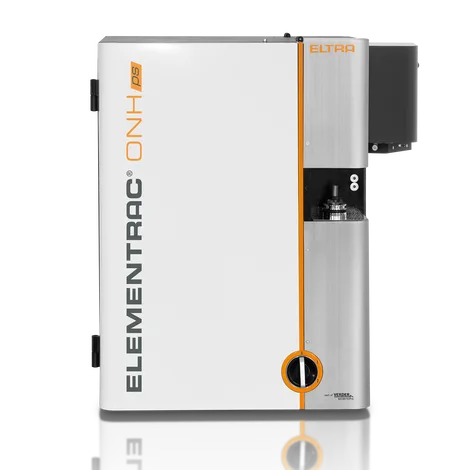

ELEMENTRAC ONH-ps: Oxygen / Nitrogen / Hydrogen Analyser
Brand: Eltra | Category: Scientific & Laboratory Equipment
Simultaneous oxygen, nitrogen and hydrogen analyser for inorganic samples, using an electrode impulse furnace that exceeds 3,000 degrees Celsius in a graphite crucible. Oxygen and hydrogen are measured by infrared absorption and nitrogen by thermal conductivity. The closed gas system keeps consumption low, and argon can be used as carrier gas in place of helium.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Typical analysis time | 120 - 180 s |
| Power requirements | 3~ 400 V, 50/60 Hz, max. 8,500 W |
| Dimensions (W x H x D) | 56 x 78 x 64 cm |
| Weight | ~ 165 kg |
Selected values from the manufacturer’s technical data for this product or explicitly named model variants. Measurement performance depends on the sample and configuration. Confirm the current model, utilities, accessories and acceptance criteria in the quotation. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample material, dimensions/quantity and required preparation or analysis result
- Measuring/working range, repeatability requirements and compatible accessories
- Utilities, calibration/reference materials, software and service scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Eltra equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
