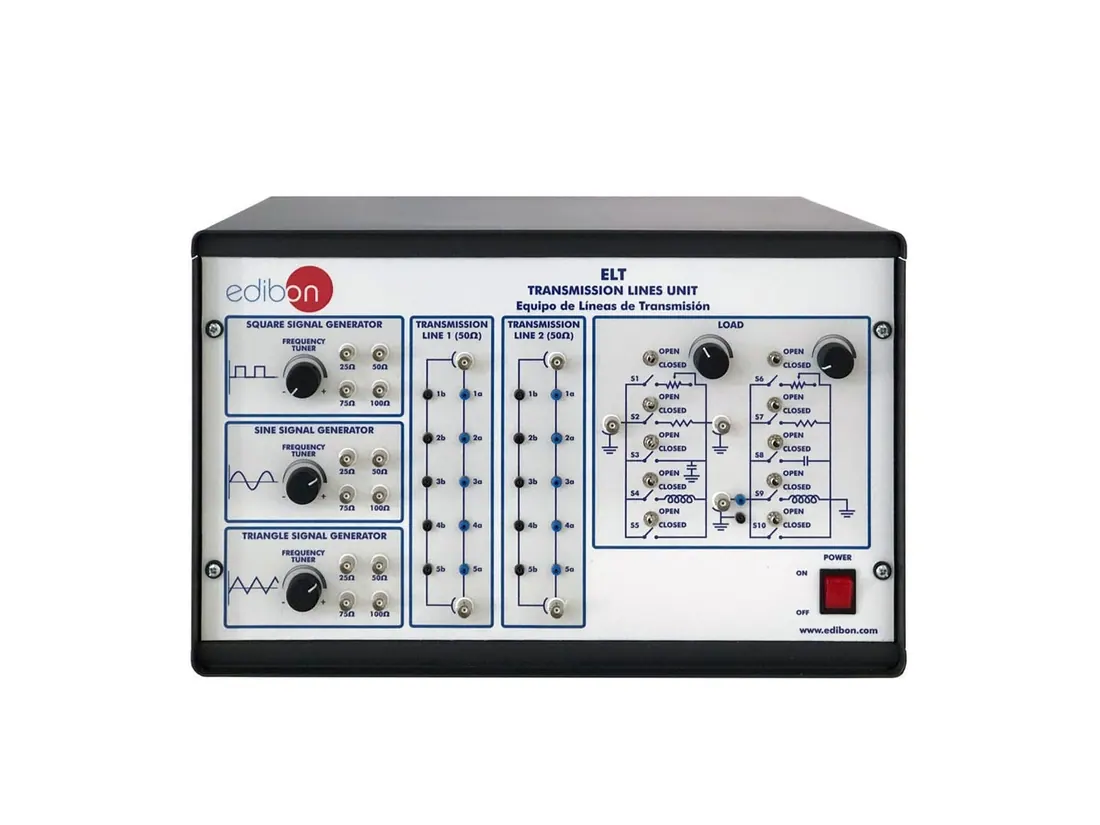

ELT: Transmission Lines Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
A unit for studying signal transmission along a standardised coaxial line. Students measure line behaviour in steady state and in the time domain, and characterise mismatches, impedance variations and discontinuities using switchable termination loads.
Technical Specifications
| Parameter | Value |
|---|---|
| Square signal generator | amplitude +12 V, frequency range 1 Hz to 50 kHz |
| Sine signal generator | amplitude 2.5 V, frequency range 1 Hz to 100 kHz |
| Triangle signal generator | amplitude 2.5 V, frequency range 1 Hz to 100 kHz |
| Specification | Two transmission lines of 40 m RG-174 coaxial cable each, 80 m in total |
| Specification | Five test points along each line, with 10 m of coaxial cable between test points |
| Specification | Two load groups with 1 K potentiometer, fixed resistance, capacitor, inductance and short or open circuit |
