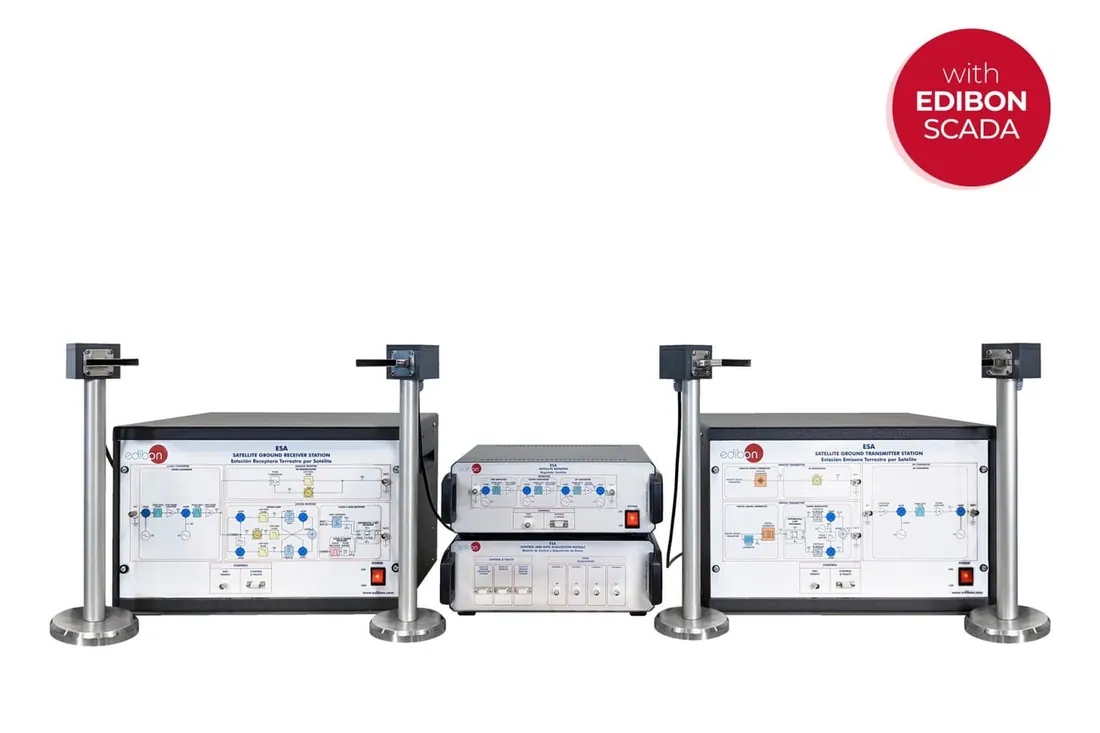

ESA: Computer Controlled Satellites Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
A computer controlled trainer for satellite telecommunication systems. Three blocks reproduce the ground transmitter station, the active satellite repeater and the ground receiver station, so students can follow the uplink and downlink signal chain and insert faults.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Satellite ground transmitter station with block diagram and test points on the front panel |
| Specification | Analog generator with audio frequency range 0 Hz to 100 Hz, parameters set in software |
| Specification | Digital generator sending one byte per cycle |
| Specification | Analog FM modulator based on a voltage controlled oscillator, digital DQPSK modulator |
| Two step up converter | first local oscillator 10 kHz, second local oscillator 916 MHz |
| Specification | Fault insertion to test the response of the system to component failure |
