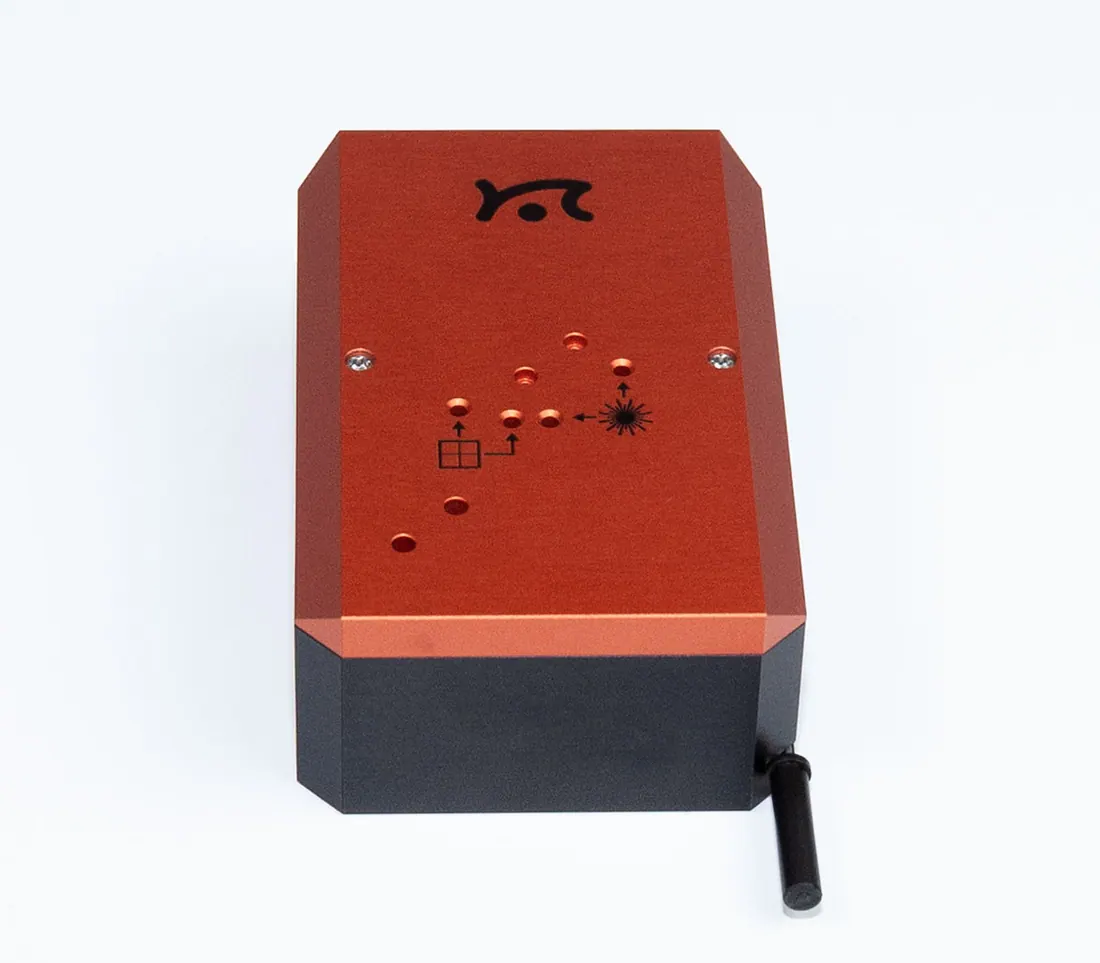

FlexAFM Camera
Brand: Nanosurf | Category: Nanotechnology
A camera module giving both top and side views of the sample on FlexAFM systems, with adjustable illumination. Laser alignment is carried out through the module, and three digital zoom stages help when positioning the tip on a small feature.
Technical Specifications
| Parameter | Value |
|---|---|
| Resolution | better than 2 um in top view, 2592 x 1944 px colour CMOS sensor |
| Field of view | 1.5 x 1.1 mm top view, 3 x 3 mm side view |
| Frame rate | 15 fps at full resolution |
| Zoom | 4x digital zoom in three stages of 1x, 2x and 4x |
| Dimensions | 97 x 65 x 36 mm, weight 0.3 kg |
| Compatibility | FlexAFM v5 and newer |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Nanosurf equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
