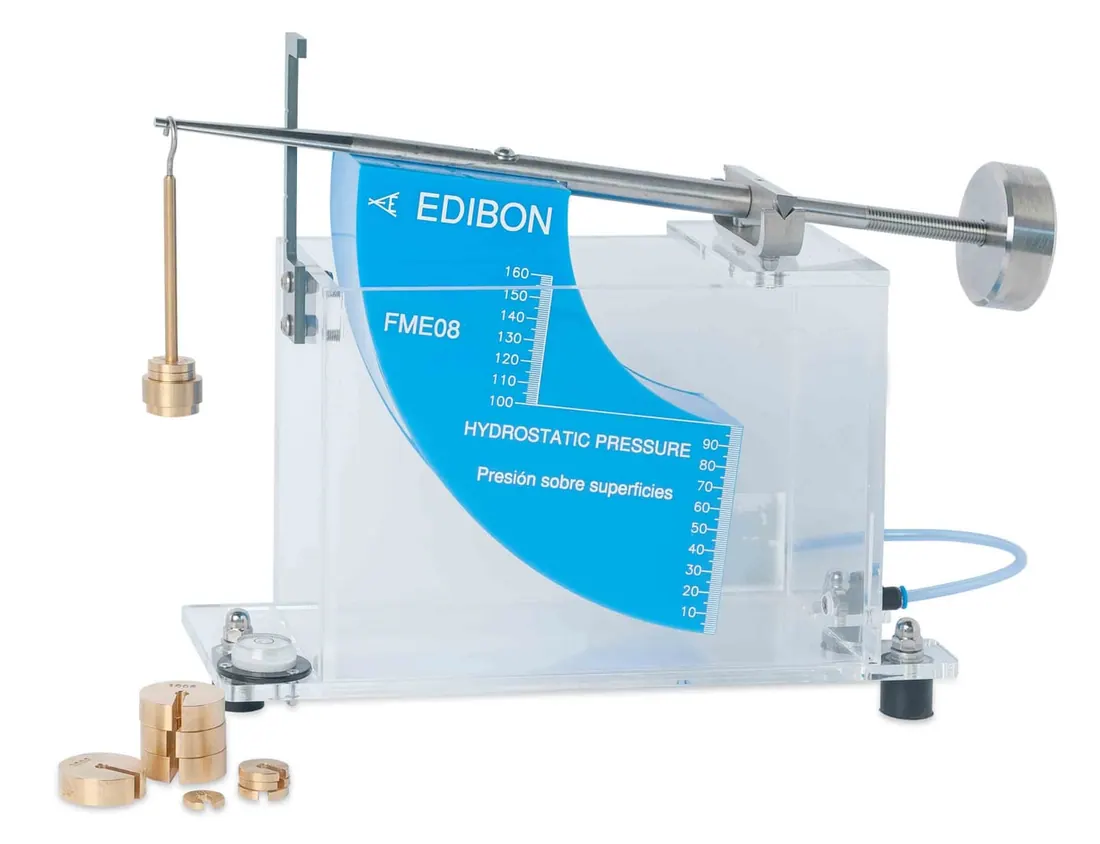

FME08: Hydrostatic Pressure
Brand: EDIBON | Category: Scientific & Laboratory Equipment
FME08 is used to measure the hydrostatic thrust on a plane surface and to locate its centre of pressure. A quadrant is partly submerged in a tank and balanced by weights on a lever, for both partly and fully immersed conditions.
Technical Specifications
| Parameter | Value |
|---|---|
| Tank capacity | 5.5 l |
| Section area | 0.007 m² |
| Submerged quadrant depth | 160 mm |
| Suspended mass-to-support distance | 285 mm |
| Unit dimensions | 550 x 250 x 350 mm approx. |
| Unit weight | 5 kg approx. |
Selected data from the model-specific panel on page 11 of the manufacturer LIFLUBA brochure. Unit dimensions and weights are approximate. The hydraulic bench/feed system and other required elements may be supplied separately; confirm the current model, accessories and complete quotation scope. Checked 2026-09-29.
Manufacturer reference document (opens in a new tab)
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Fluid mechanics experiments, syllabus and number of student workstations
- Required base unit, modules, sensors, control/data-acquisition software and accessories
- Bench/floor space, utilities, practical manuals and faculty training
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
