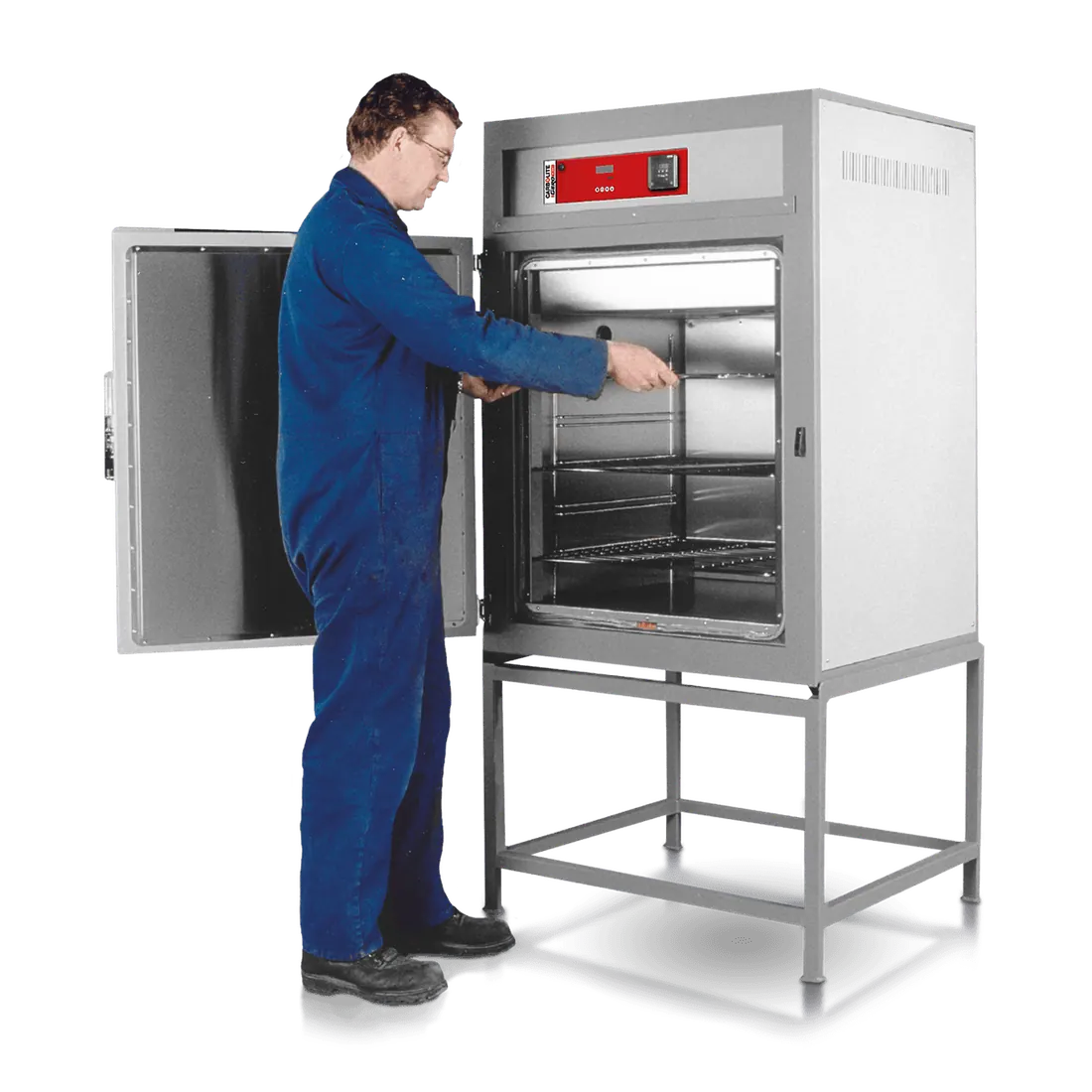

General Purpose Industrial Oven GP
Brand: Carbolite Gero | Category: Nanotechnology
A 300 deg C industrial oven built for production use, supplied in three sizes and two airflow configurations. The A version uses vertical airflow and the B version horizontal airflow, and the range is often the basis for custom builds.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum operating temperature | 300 deg C |
| Configurations | vertical (A) or horizontal (B) airflow |
| Specification | Carbolite 301 controller with single ramp to set-point and process timer |
| Specification | Polished 430 grade ferritic stainless steel internal case |
| Specification | Mineral insulated metal sheathed heating elements |
| Specification | Bespoke specifications available for AMS2750F Nadcap compliant applications |
