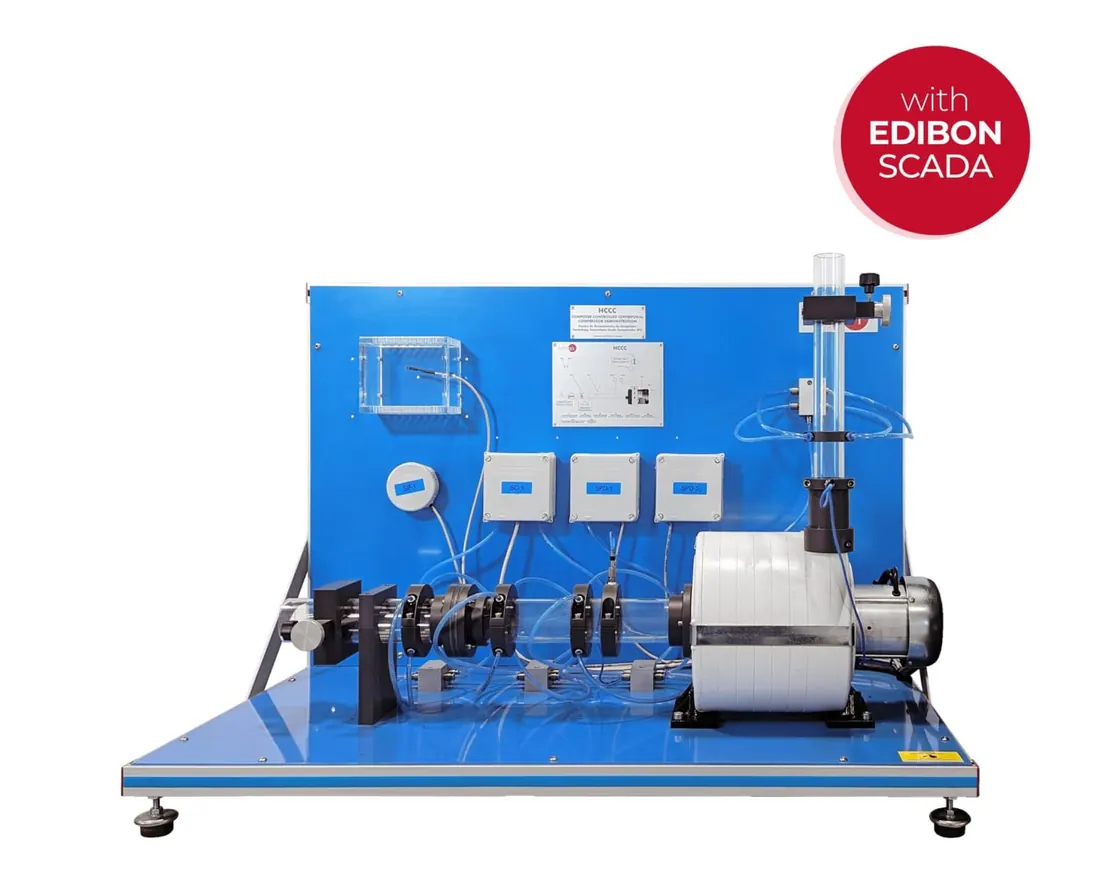

HCCC: Computer Controlled Centrifugal Compressor Demonstration Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
HCCC is a computer controlled centrifugal compressor test set. Pressure ratio, mass flow, speed and power are logged so the compressor map, the onset of surge and the isentropic efficiency can be examined.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 1000 x 600 x 700 mm approx |
| Weight | 50 Kg approx |
| Maximum speed | 3000 rpm approx |
| Specification | Maximum volumetric flow 72 m/h |
| Maximum power consumption | 250 W |
| Environmental humidity sensor, range | 0 to 100 % |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
Back to Scientific & Laboratory Equipment
More from Hydraulic Machines Lab
- HCRC: Computer Controlled Reciprocating Compressor Unit
HCRC is a computer controlled reciprocating compressor test set. Delivery pressure, flow, speed and power are logged and the indicator diagram is recorded, so volumetric and isothermal efficiency can be determined.
- HTMC: Computer Controlled Hydraulic Turbines Modular Unit
HTMC is a computer controlled base unit that accepts interchangeable turbine models. Pelton, Francis, Kaplan, axial flow and radial flow runners are published for it, so several machines can be tested from one instrumented service module.
- HCDEC: Computer Controlled Two-Stage Compressor Test Unit
HCDEC is a computer controlled two stage reciprocating compressor with intercooling. Pressures, temperatures, flow and power are logged at each stage so students can quantify the saving produced by interstage cooling.
