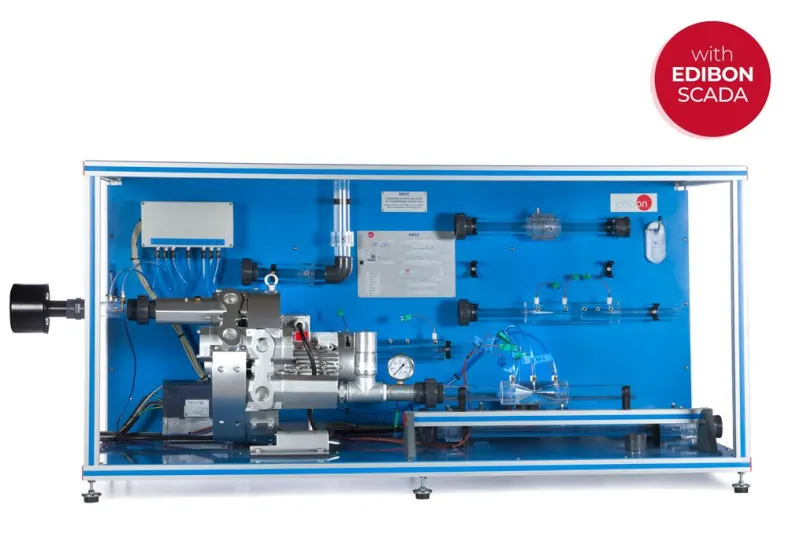

HFCC: Computer Controlled Flow of Compressible Fluids Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
HFCC is a computer controlled unit for studying compressible flow. Air passes through convergent and convergent divergent nozzles while pressure and flow are logged, so choking, the critical pressure ratio and shock behaviour can be examined.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 1600 x 740 x 740 mm approx |
| Weight | 115 Kg approx |
| Maximum flow rate | 120 m³/h |
| Maximum pressure | 460 mbar |
| Abrupt widening length | 200 mm |
| Inner diameter of the wide section | 32 mm |
