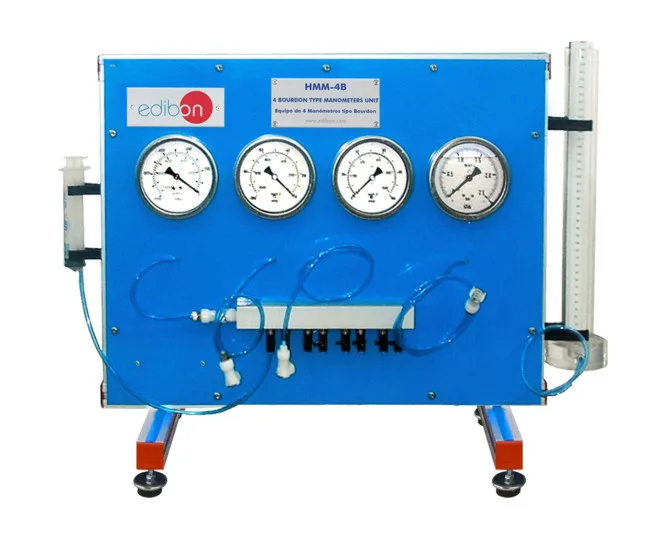

HMM-4B: 4 Bourdon type Manometers Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Designed by EDIBON, the 4 Bourdon type Manometers Unit, "HMM-4B", is notable for incorporating Bourdon-type gauges for precise pressure measurements in fluid systems.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Vacuum gauge ranges | −9800–0 mmH₂O and −1000–0 mmH₂O |
| Pressure gauge ranges | 0–1000 mmH₂O and 0–2.5 bar |
| Dimensions | 720 × 300 × 570 mm approx. |
| Weight | 15 kg approx. |
Selected values from the HMM-4B model panel, page 5 of the HMM manufacturer brochure. Tube length is not an independent pressure-accuracy rating. Confirm the working fluid, connected apparatus and pressure limits for the experiment; dimensions and weights are approximate. Checked 2026-09-29.
Manufacturer reference document (opens in a new tab)
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Fluid mechanics experiments, syllabus and number of student workstations
- Required base unit, modules, sensors, control/data-acquisition software and accessories
- Bench/floor space, utilities, practical manuals and faculty training
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
