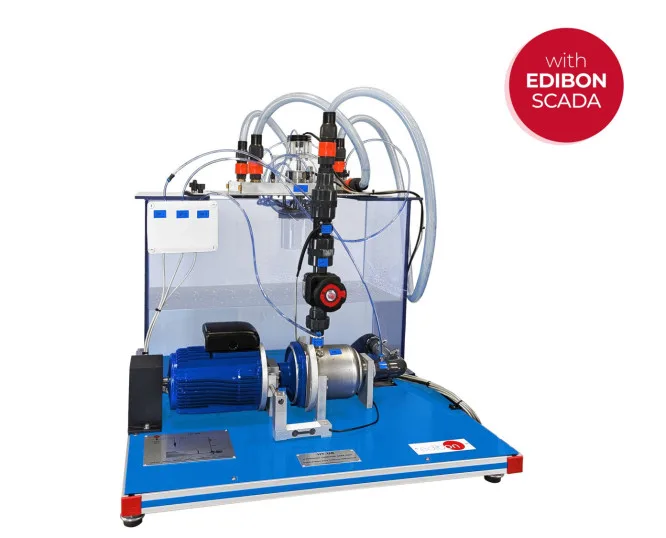

HT-FA: Axial Flow Turbine Model
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Consisting of a small-scale turbine with single-stage axial flow input, the "HT-FA" Axial Flow Turbine Model has eight nozzles that act as water rings the rotor, four of which have an incidence angle of 20º and the other four of 30º.
Published installation data
| Parameter | Value |
|---|---|
| Unit dimensions | 800 × 900 × 800 mm approx. |
| Unit weight | 100 kg approx. |
Selected installation data for HT-FA from the manufacturer brochure, page 11. Dimensions and weight are approximate and refer to this named unit or module, not the complete laboratory. Confirm operating specifications, base equipment, utilities and supplied accessories in the quotation. Checked 2026-09-29.
Manufacturer reference document (opens in a new tab)
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Hydraulic machines experiments, syllabus and number of student workstations
- Required base unit, modules, sensors, control/data-acquisition software and accessories
- Bench/floor space, utilities, practical manuals and faculty training
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
