IKEGAMI MKC-X200
Brand: Karl Kaps | Category: Medical Equipment

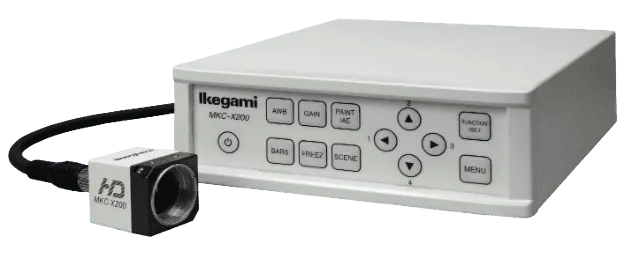

Kaps presents the MKC-X200 as a new standard in micro surgical imaging. Its 1 CMOS structure yields what Ikegami describes as its smallest and lightest camera head, weighing only 60g at 31 x 31 x 36 mm, so it mounts on a range of surgical microscopes without upsetting balance. Resolution of 900 TV lines with a 56dB signal-to-noise ratio and F11/2000 lx sensitivity holds image quality even in difficult light, while the electronic shutter works with automatic gain control to keep exposure right as object lighting changes. Four scene files are reachable from the CCU front buttons, alongside digital zoom up to x4, a freeze function and flip and rotate options.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Camera sensor layout | Single CMOS |
| Camera-head weight | 60 g |
| Camera-head dimensions | 31 × 31 × 36 mm |
| Digital zoom | Up to 4× |
| Scene-file presets | 4 |
Selected details from the named Karl Kaps product page. Optical performance and compatibility depend on the chosen objectives, eyepieces, illumination and mounting. Optional equipment is not included unless specified in the quotation. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Specimen or clinical application and required imaging/measurement outputs
- Optics/source, detectors, working distance, stage and documentation options
- Room conditions, utilities, preparation accessories and operator training
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Clinical, training or facility application
- Required configuration, accessories and existing equipment
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
