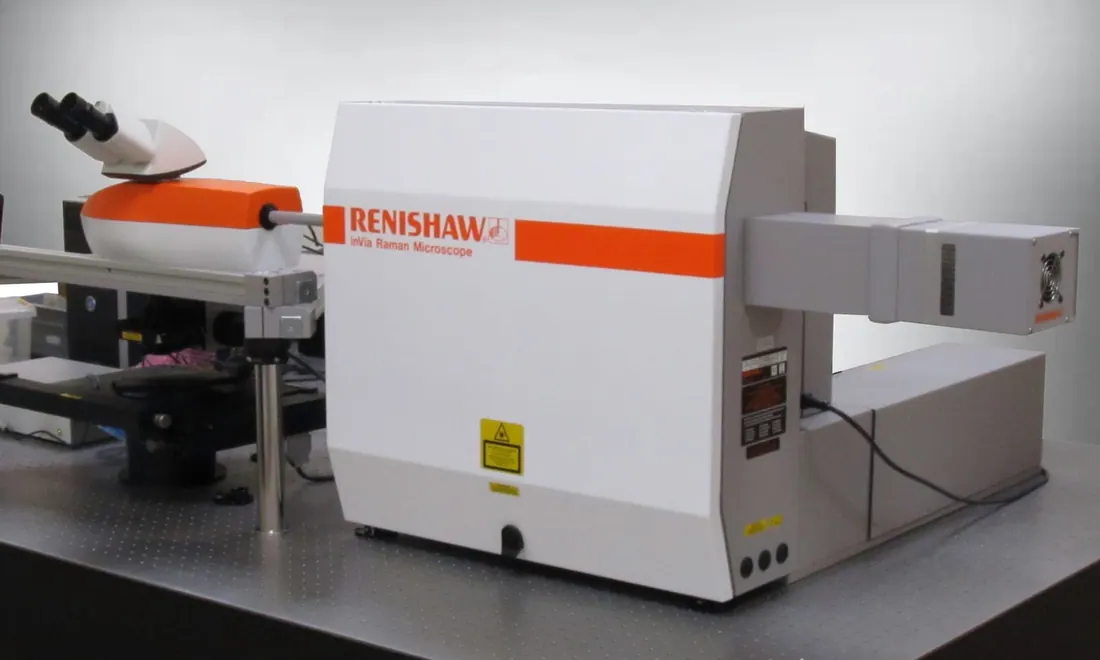

inVia confocal Raman microscope
Brand: Renishaw | Category: Scientific & Laboratory Equipment
A research grade confocal Raman microscope that pairs a research microscope with a high performance Raman spectrometer. It records point spectra and chemical images from solids, liquids and thin films, and is supplied in three models: inVia Basis, inVia Reflex and inVia Qontor.
Technical Specifications
| Parameter | Value |
|---|---|
| Wavelength range | 200 nm to 2200 nm |
| Lasers supported | 229 nm to 1064 nm |
| Spectral resolution | 0.3 cm-1 (FWHM) |
| Spatial resolution | 0.25 um lateral, less than 1 um axial |
| Detector | 1024 pixel x 256 pixel, operating at -70 degC |
| Low wavenumber cut-off | 5 cm-1 |
