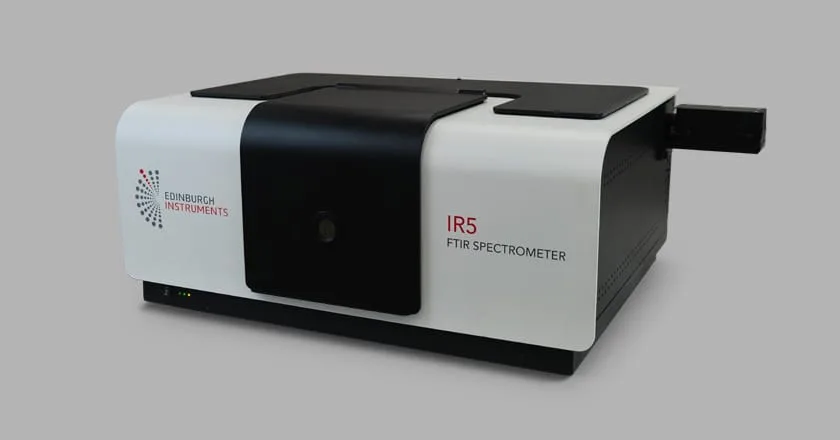

IR5: FTIR Spectrometer
Brand: Edinburgh Instruments | Category: Scientific & Laboratory Equipment
Fourier transform infrared spectrometer covering 8000 to 350 wavenumbers with a signal to noise ratio of 20,000:1. Integrated desiccants and an electronic dry membrane keep the optics dry without routine purging, and a photoluminescence upgrade adds Fourier transform PL measurement, which is unusual on a benchtop FTIR.
Technical Specifications
| Parameter | Value |
|---|---|
| Standard spectral range | 8000–350 cm⁻¹ |
| Standard detector | DLaTGS |
| Available spectral resolutions | 0.5, 1, 2, 4, 8, 16 and 32 cm⁻¹ |
| Wavenumber accuracy | 0.5 cm⁻¹ |
| Source | High-intensity ceramic source |
| Beamsplitter | Germanium-coated KBr |
| Mains input | 100–240 VAC; 47–63 Hz |
| Dimensions (W × D × H) | 660 × 540 × 300 mm |
| Weight | 37 kg |
Selected standard-configuration values from Edinburgh Instruments’ IR5 technical table. ATR accessories, a second detector and the photoluminescence upgrade are separate configuration choices; confirm the quoted configuration and its measurement conditions. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample type, measurement method and required spectral/time range
- Source/laser, detector, resolution, sample holder and optical interfaces
- Software, laser safety/site requirements, calibration and application training
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
