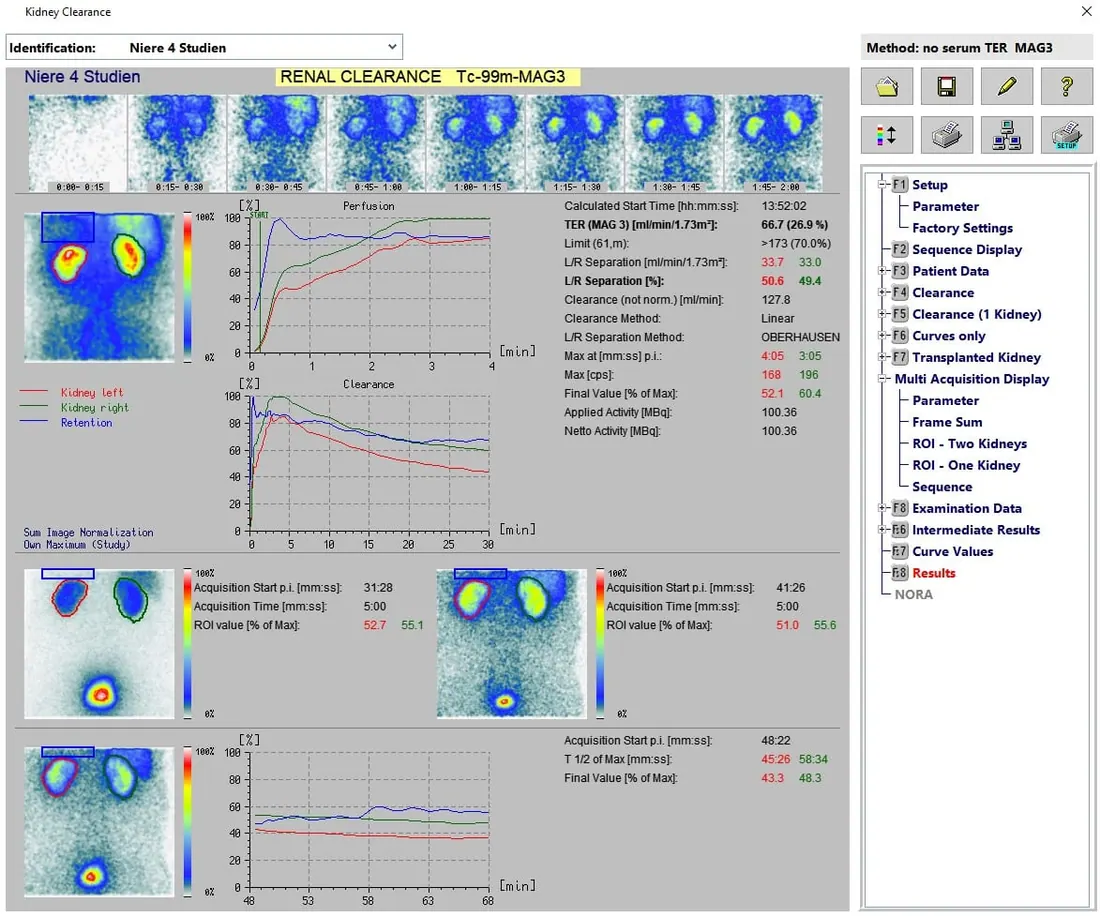

Kidney - TER, GFR and ERPF calculation
Brand: MiE GmbH | Category: Nuclear Medicine & Imaging
A SCINTRON renography package covering MAG3, DTPA and OIH studies. Start time is recognised automatically so one person can inject and acquire, the measurement protocol with syringe, serum sample and calibration data is supported, and age and gender dependent normal values are applied.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Kidney calculation for MAG3, DTPA and OIH |
| Specification | GFR measurement according to the Gates method using DTPA |
| Specification | Automatic recognition of start time |
| Specification | Support of the complete measurement protocol including calibration factors and half life correction |
| Specification | Up to four studies displayed together |
| Specification | Implemented motion correction tool |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Department workflow and intended equipment use
- Required configuration and existing system interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about MiE GmbH equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
