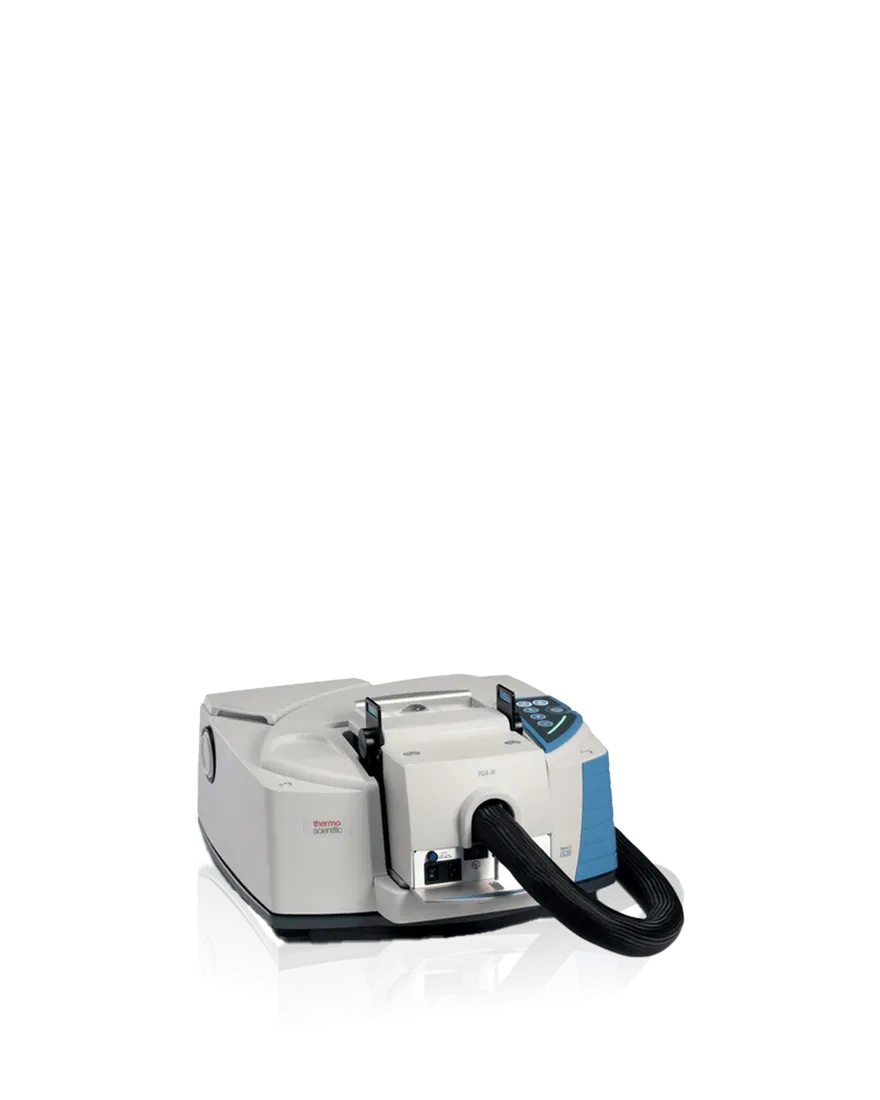

L40 EGA FTIR
Brand: Linseis | Category: Nanotechnology
The L40 EGA FTIR couples a Linseis STA L81 thermobalance to a Nicolet FTIR spectrometer for evolved gas analysis. Gases released from the sample during heating pass along a temperature controlled transfer line and are identified by their infrared absorption bands. It is used to assign mass loss steps to species.
Technical Specifications
| Parameter | Value |
|---|---|
| Transfer line temperature | controlled up to a maximum of 250°C |
| Wavenumber range | 7500 cm-1 to 370 cm-1 |
| Resolution | 1 cm-1 |
| Transfer line material | PTFE (interchangeable) |
| Couplings | DIL, TMA, STA, TGA, DTA, DSC |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Linseis equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
More from Thermal Analysis & Thermophysical Measurement
- L40 EGA GCMS
The L40 EGA GCMS couples a Linseis thermal analysis instrument to a gas chromatograph and mass spectrometer. Gases evolved from the sample during heating are separated by the chromatograph and then identified by the spectrometer. It is used to analyse the gases developed during a measurement.
- L40 EGA QMS
The L40 EGA QMS couples a Linseis thermobalance to a Pfeiffer or MKS quadrupole mass spectrometer for evolved gas analysis. Gases released from the sample during heating are drawn off through a heated adapter and capillary and identified by mass. It is used to link each mass loss step to the species given off.
- L40 EGA In-Situ
The L40 EGA In-Situ coupling analyses the gases evolved from a sample in situ, using FTIR, Raman spectroscopy or ELIF. It measures basic and trace gas components down to the ppm range. It allows materials with high condensation temperatures, such as alkali metals and their compounds, to be measured.
