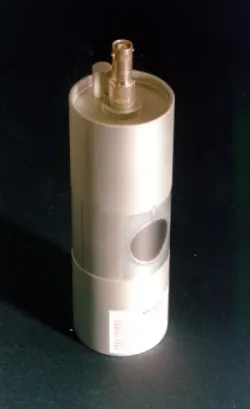

LND-45431 Proportional Counter
Brand: WissEl | Category: Nanotechnology
A gas filled proportional counter used as the transmission detector in a Mossbauer spectrometer. The beryllium entrance window and argon, krypton or xenon filling give good efficiency at the low gamma energies used in Mossbauer spectroscopy.
Technical Specifications
| Parameter | Value |
|---|---|
| Gas filling | argon, krypton or xenon at 1 atmosphere, optionally 2 atmospheres |
| Window | beryllium, 0.127 mm thick, 25.4 mm diameter |
| Cathode material | aluminium |
| Specification | Maximum diameter 50.8 mm, effective diameter 47.8 mm |
| Total length including MHV connector | 185.7 mm |
| Recommended operating voltage | 2050 V |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about WissEl equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
