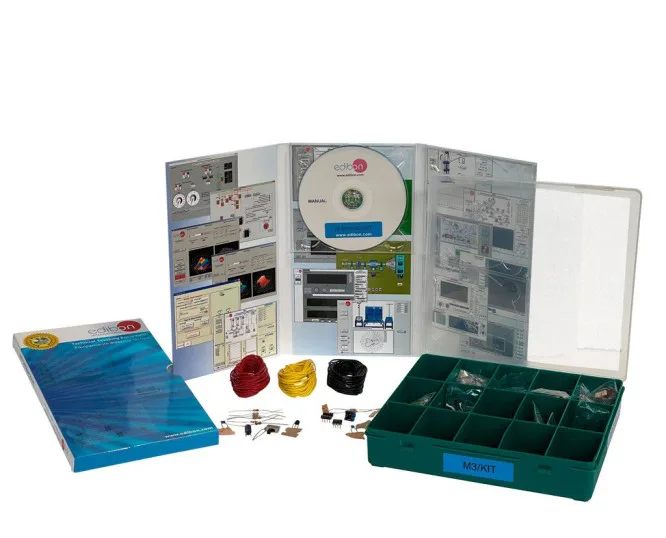

M3/KIT: Semiconductors I Kit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Designed by EDIBON, the Semiconductors I Kit, "M3/KIT", allows the basic concepts of diodes to be studied. At the same time, the student carries out a series of assemblies on the practice board, consolidating knowledge of PN-type junctions, uses of the diode as a rectifier, Zéner diodes, etc.
Published installation data
| Parameter | Value |
|---|---|
| Kit dimensions | 300 × 300 × 200 mm approx. |
| Kit weight | 500 g approx. |
| Required separately | FACO power supply and N-M15 development module |
Manufacturer kit panel for M3/KIT, page 8. Dimensions and weight are approximate; FACO and N-M15 are listed as required equipment not included with the kit. The optional EDAS/VIS acquisition system has its own ratings and is not treated as a kit specification. Confirm the current component list and workstation configuration. Confirm operating specifications, base equipment, utilities and supplied accessories in the quotation. Checked 2026-09-29.
Manufacturer reference document (opens in a new tab)
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Basic electronics experiments, syllabus and number of student workstations
- Required base unit, modules, sensors, control/data-acquisition software and accessories
- Bench/floor space, utilities, practical manuals and faculty training
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
