MagIQ 142
Brand: Leeds Test Objects | Category: Nuclear Medicine & Imaging

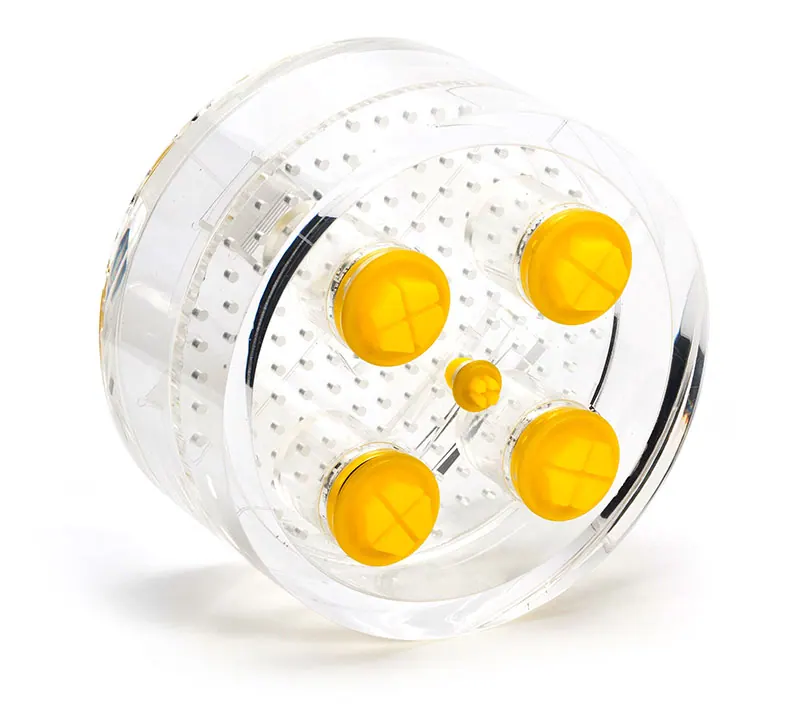

A compact MRI image quality phantom with a main chamber and four test tubes, giving five separately filled signal compartments. It measures geometric distortion, spatial resolution, contrast resolution, fat suppression, SNR, ghosting, uniformity and slice profile.
Technical Specifications
| Parameter | Value |
|---|---|
| External dimensions | 142 mm diameter and 75 mm deep |
| Specification | 5 separate signal compartments from a main chamber and 4 test tubes |
| Specification | Supplied with 3.5 litres each of 1.5T and 3.0T MRI solutions as standard |
| Specification | Geometric distortion array of uniformly pitched 3.0 mm diameter high contrast circles |
| Specification | External LCD temperature strip and white pigment filled centre markings |
| Conforms to IEC 62464-1 | 2019 |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Department workflow and intended equipment use
- Required configuration and existing system interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Leeds Test Objects equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
