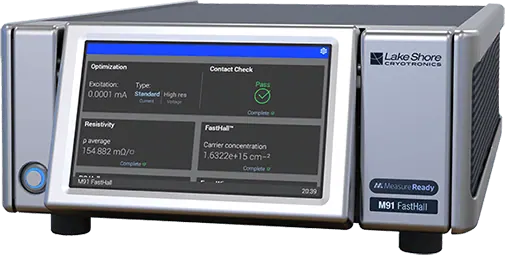

MeasureReady M91 FastHall Measurement Controller
Brand: Lake Shore | Category: Nanotechnology
The MeasureReady M91 FastHall Measurement Controller is an instrument for Hall effect measurements on material samples. It uses Lake Shore's patented FastHall measurement technique, which shortens the time needed to complete a measurement. It is used for characterisation of semiconductors and electronic materials.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Base resistance range | 10 mΩ–10 MΩ |
| With M9-ADD-HR option | 10 mΩ–200 GΩ |
| Hall mobility range | 0.001–10⁶ cm²/(V·s) |
| Voltage measurement ranges | 1 mV, 10 mV, 100 mV, 1 V and 10 V |
| Current excitation ranges | 1 µA, 10 µA, 100 µA, 1 mA, 10 mA and 100 mA |
| Display | 5-inch colour touch screen; 800 × 480 pixels |
| Dimensions (W × H × D) | 216 × 87 × 369 mm |
| Weight | 6.4 kg |
Base and optional high-resistance configurations are distinct. Measurement accuracy depends on the selected ranges, current reversal, lead resistance and ambient conditions; consult the manufacturer accuracy table for the planned measurement. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Material/sample geometry and required measurement range or uncertainty
- Compatible sensors, fixtures, controller and environmental conditions
- Reference materials, calibration, software and installation scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Lake Shore equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
