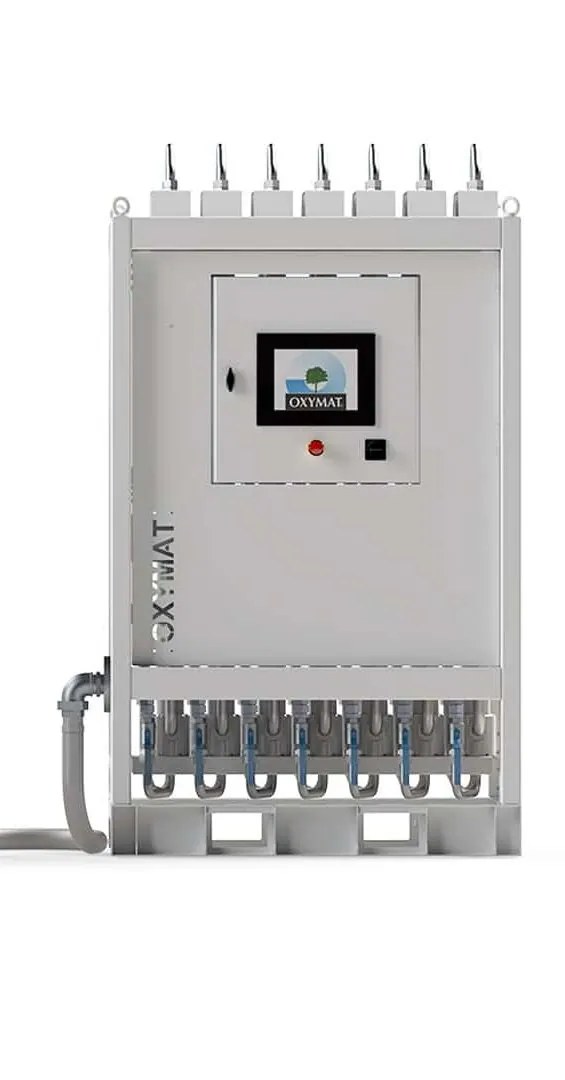

Membrane nitrogen generator NM series
Brand: Oxymat | Category: Scientific & Laboratory Equipment
Membrane nitrogen generator in single- and double-membrane configurations for applications such as marine inerting. Compare flow at the required nitrogen purity and pressure. Verify dimensions and the exact classification approvals needed for the proposed installation.
Technical Specifications
| Parameter | Value |
|---|---|
| Capacity | 22 to 641 Nm3/h at 95% purity |
| Cabinet volume | Approximately 2.04 m³; see dimensions for floor area |
| Specification | Single models NM-S1FF to NM-S7FF, 261 kg to 349 kg |
| Specification | Double models NM-D4FF to NM-D7FF, 364 kg to 452 kg |
| Dimensions L x W x H | 790 x 1190 x 2050 mm |
| Specification | Stainless steel piping AISI 316, Modbus RS-485 communication |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Oxymat equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
