Myocard SPECT
Brand: MiE GmbH | Category: Nuclear Medicine & Imaging

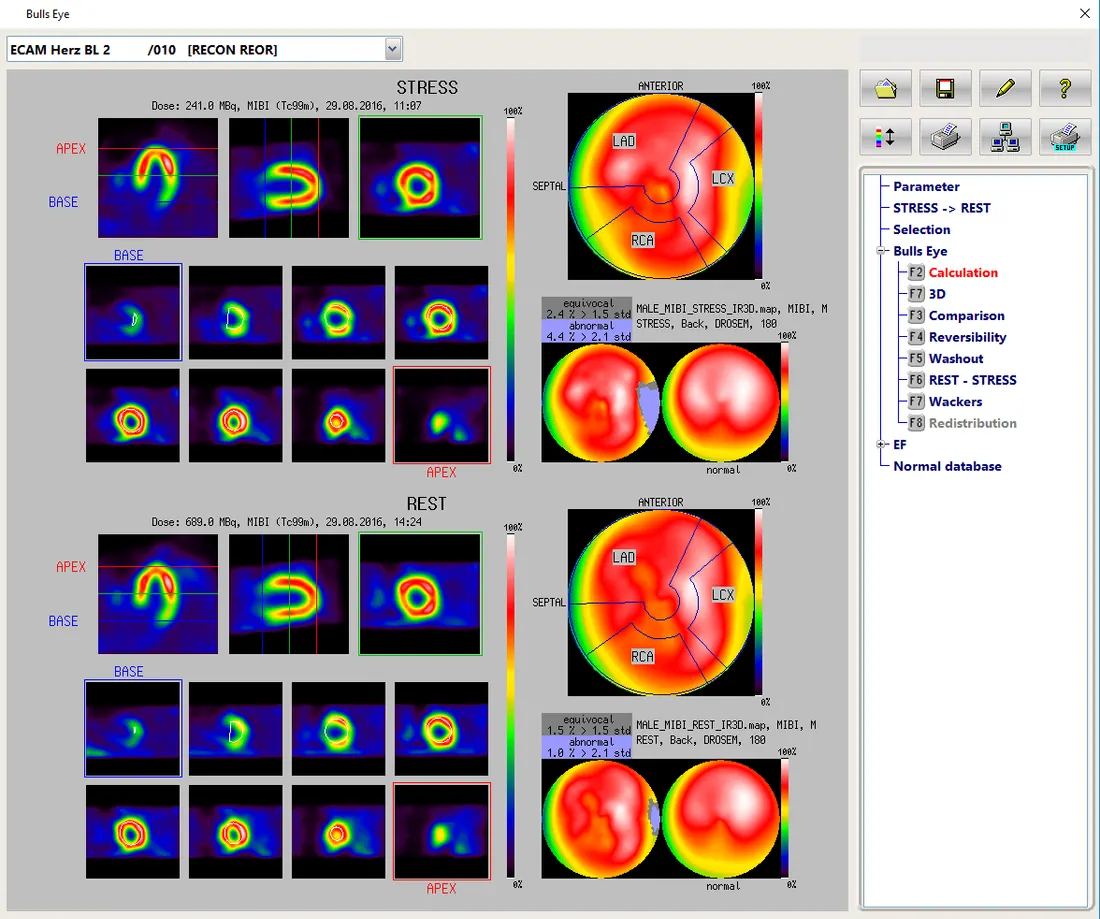

A SCINTRON cardiac SPECT package that builds the bullseye polar map of activity in the left ventricle from stress or rest studies. Gated and non gated data can be processed, ejection fraction, wall motion and wall thickening are calculated, and results compare against a normal database.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Automatic bullseye (polar map) calculation, with user control available |
| Specification | Automatic estimation of ventricular axis and complete ventricular geometry |
| Specification | Ejection fraction, volume curve, end systolic and end diastolic volume, cardiac output |
| Specification | Wall thickening and wall motion polar plots with cine display |
| Specification | MyoQuant HS user editable myocardial normal database |
| Specification | SDS, SSS, SRS result screens and blackout maps, 17 segment model |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Department workflow and intended equipment use
- Required configuration and existing system interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about MiE GmbH equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
