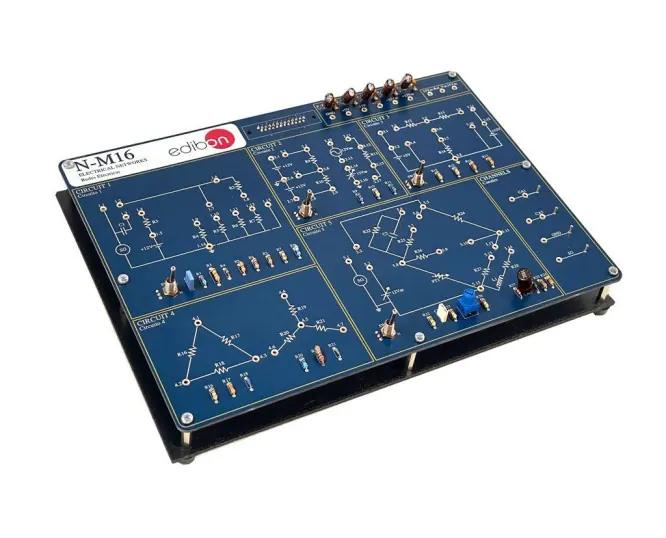

N-M16: Electric Networks Module
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Covers network analysis on a single panel: Ohm's law, Thevenin and Norton equivalents, the superposition theorem, Wheatstone bridge operation and star to delta transformation. Faults can be switched into most circuits so students investigate what has changed and why.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 300 x 210 x 45 mm |
| Weight | 300 g approx |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
