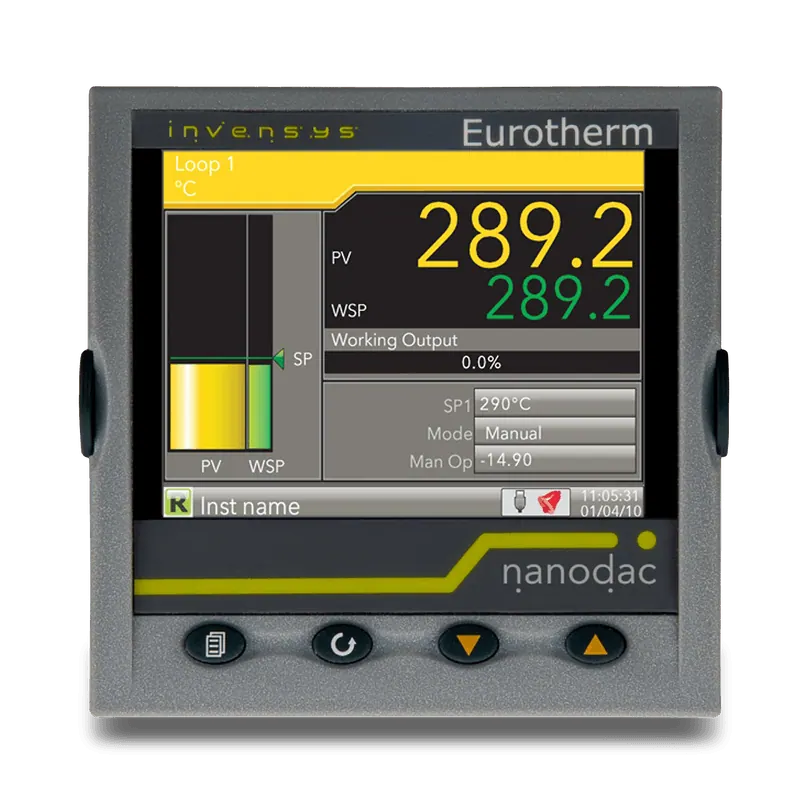

nanodac Recorder, Controller and Programmer
Brand: Carbolite Gero | Category: Nanotechnology
A compact paperless chart recorder and data acquisition unit that can also be supplied as a combined recorder and set point controller or programmer. Data is logged continuously and can be archived to USB or to a networked server.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | 4 recording channels plus up to 14 virtual channels for maths functions and averaging |
| Specification | 50 MB internal memory and up to 8 GB to a USB memory stick |
| Specification | Data logged as CSV or Eurotherm Hydra History secure format |
| Specification | Data archiving to an FTP server over Ethernet |
| Specification | Full colour VGA display, data shown as bar graphs or line traces |
| Specification | Optional combined chart recorder with set-point controller or programmer |
