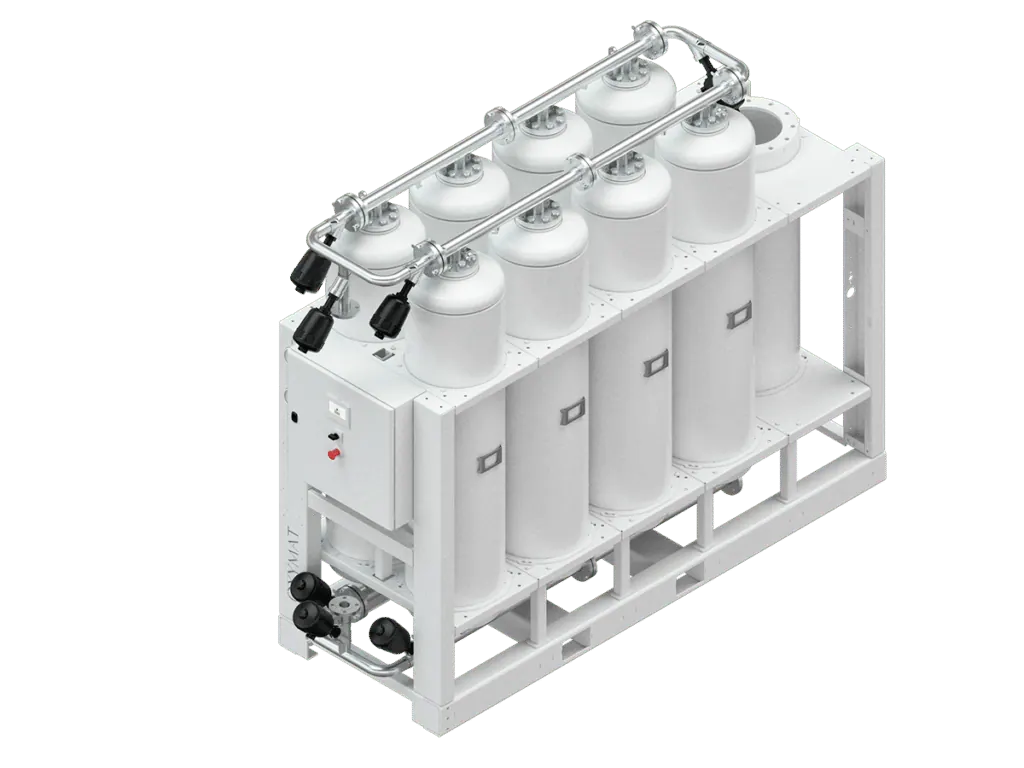

O200 Nordic Supreme
Brand: Oxymat | Category: Scientific & Laboratory Equipment
Higher capacity version of the O200 modular PSA oxygen range, available in four vessel configurations. It suits aquaculture, wastewater and ozone duties where oxygen demand grows over time, since capacity is added by extending the same frame.
Technical Specifications
| Parameter | Value |
|---|---|
| Capacity | 36.4 to 83.5 Nm3/h at 93% purity |
| Specification | Energy consumption from 0.6 kW/Nm3 |
| Models | O200-2, O200-3, O200-4, O200-5 |
| Weights | 1595 kg to 3460 kg |
| Dimensions L x W x H | 1973 x 934 x 2237 mm to 3396 x 934 x 2237 mm |
| Specification | All pipes and valves in stainless steel SS 316L |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Oxymat equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
