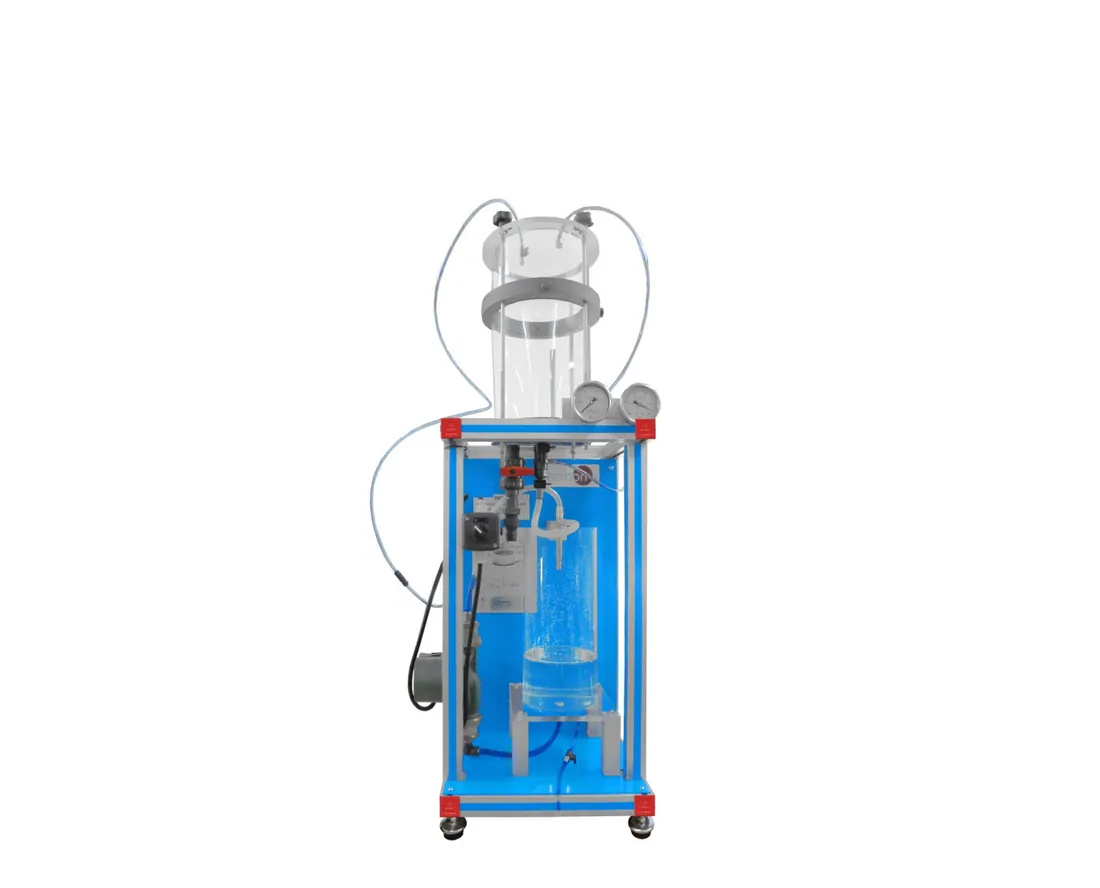

PAHS: Soil Moisture Suction Sand Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
PAHS is used to measure the relationship between soil moisture content and suction. A sand column is drained in stages while tensiometers record suction at different heights, giving the soil moisture characteristic curve. A computer controlled version, PAHSC, is also published.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 400 x 500 x 1200 mm approx |
| Weight | 90 kg approx |
| Water tank with drain valve, capacity | 6 l, approx |
| Suction system, including water pump, max. flow | 3 l/min |
| Suction system, including water jet pump, flow | 5 l/min, suction flow: 0.5 l/min |
| Soils container, including tank. Tank diameter | 200 mm, capacity: 10 l |
