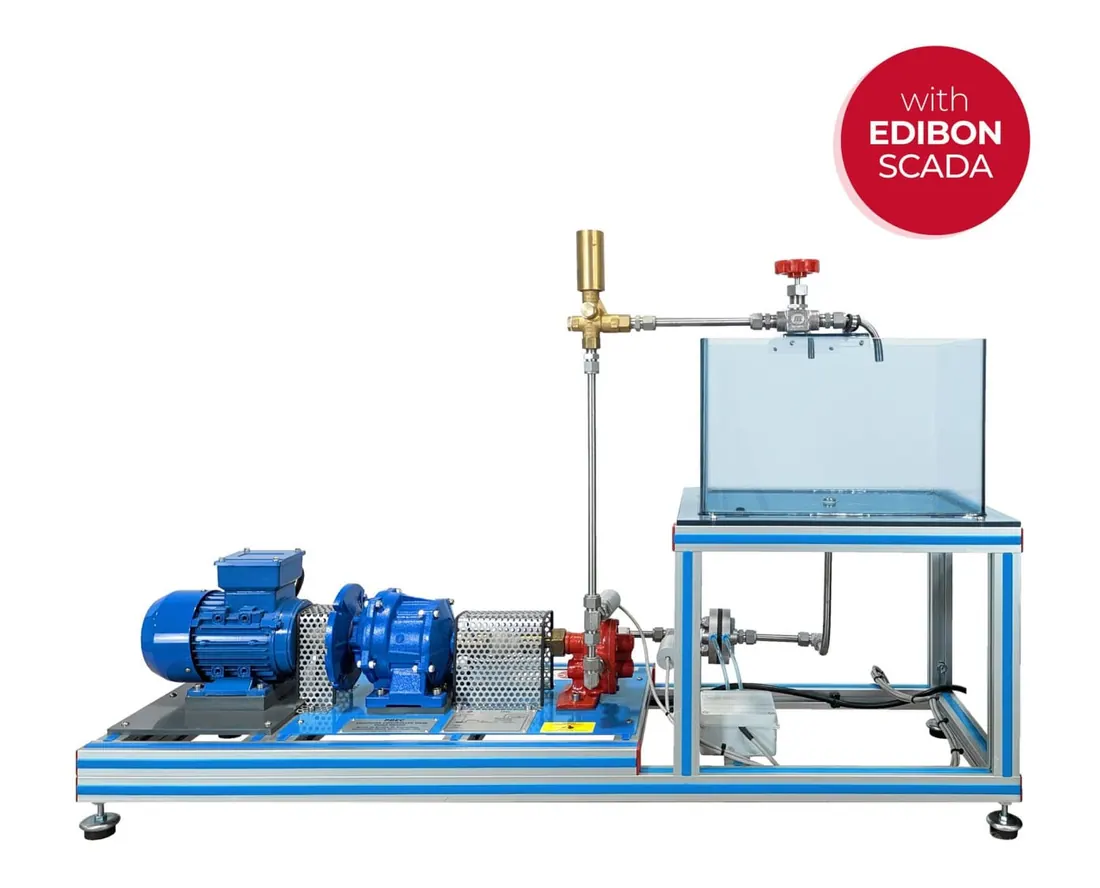

PBEC: Computer Controlled Gear Pump Bench
Brand: EDIBON | Category: Scientific & Laboratory Equipment
PBEC is a computer controlled test bench for a gear pump. Flow, pressure, speed and power are logged so the characteristic curves of this positive displacement machine can be obtained and compared with a centrifugal pump.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 1100 x 450 x 800 mm approx |
| Weight | 30 Kg approx |
| Maximum flow | 15 l/min |
| Electric AC motor gear pump speed | 1400 rpm (to 50 Hz) |
| Sensors discharge pressure sensor, range | 0 to 6.2 bar |
| Sensors admission pressure sensor, range | -1 to 0 bar |
