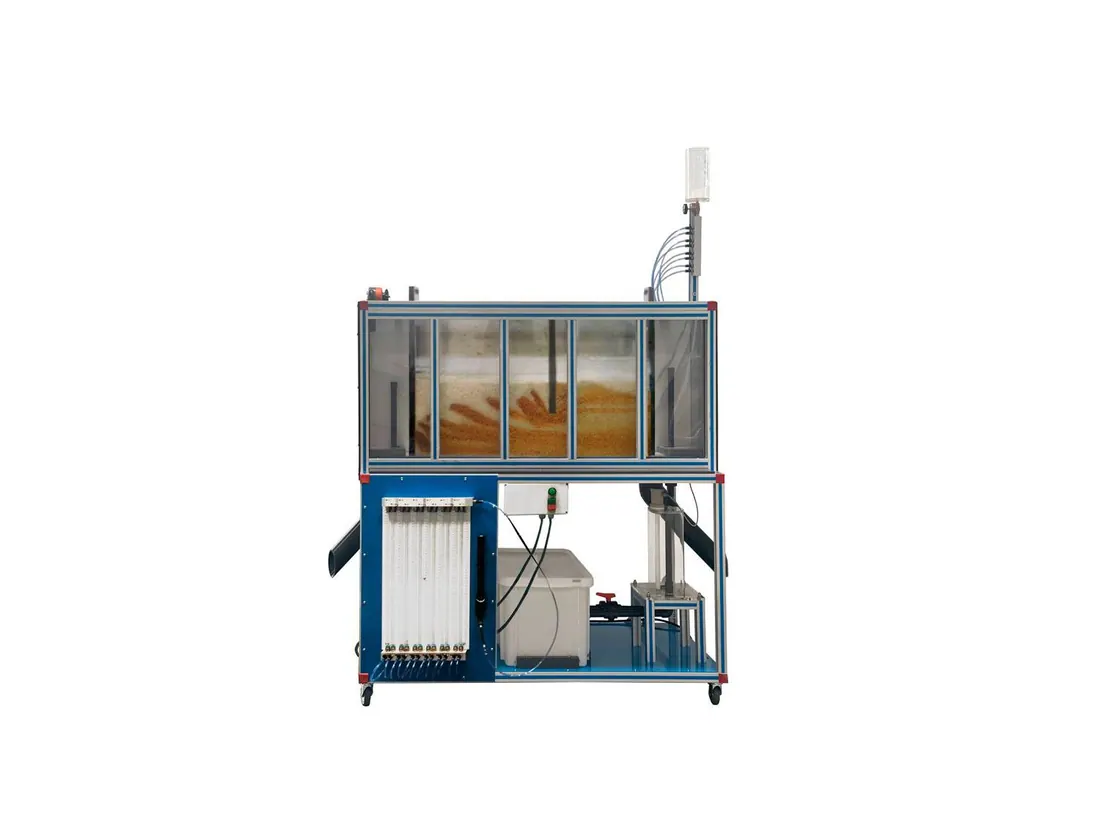

PDFD: Drainage and Seepage Tank
Brand: EDIBON | Category: Scientific & Laboratory Equipment
PDFD is a glass sided tank for studying seepage and land drainage. Sand is placed between adjustable water levels and piezometers record the phreatic surface, so flow nets and drain spacing can be examined. A computer controlled version, PDFDC, is also published.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 1500 x 700 x 2000 mm approx |
| Weight | 200 Kg approx |
| Feed water tank (capacity | 75 l) |
| Water pump | 0.37 KW, 30 to 80 l/min at 20.1 to 12.8 mwc |
| Water colletion tank (capacity | 75 l). This tank is connected to the feed water tank |
